| DC OUTPUT | ||
|
Output Volts (V)
|
Output Amps (A)
|
|

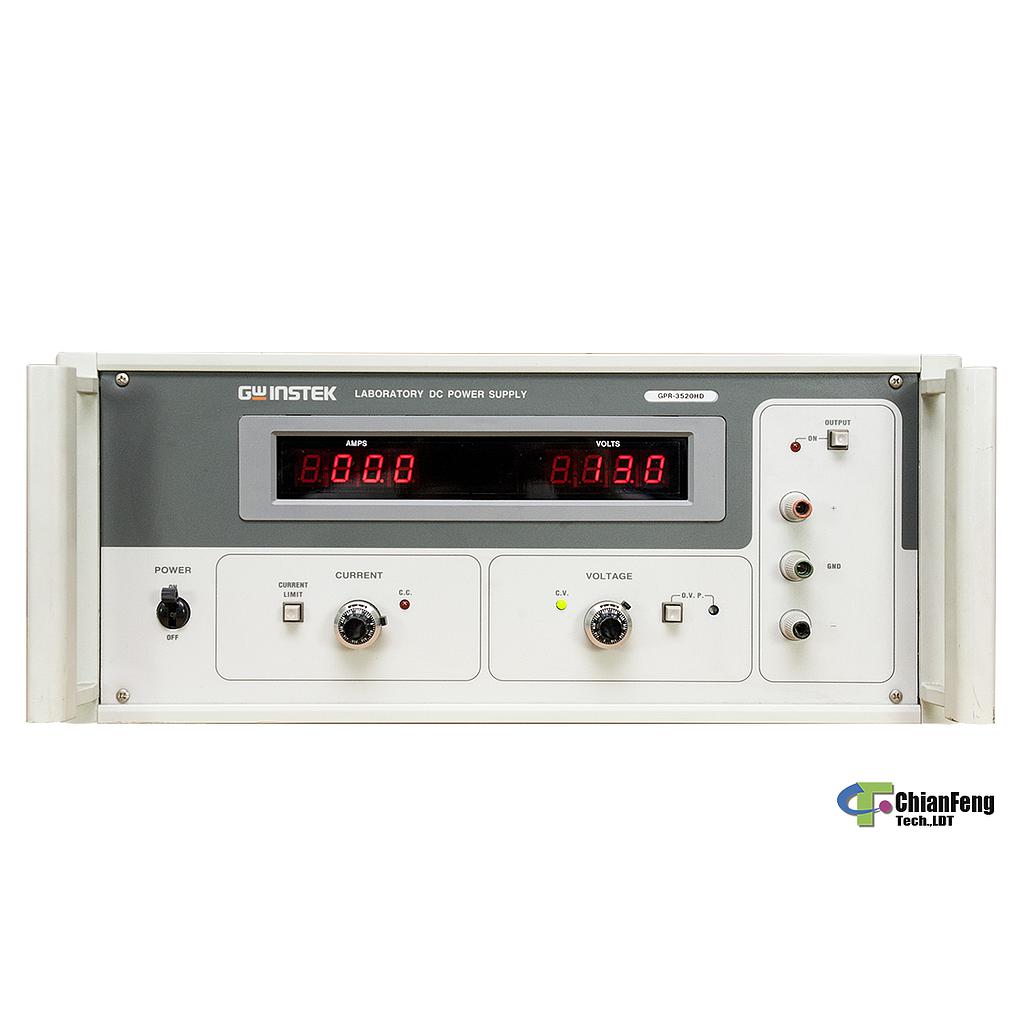

| GPR-1850HD |
0 ~ 18
|
0 ~ 50
|
| CONSTANT VOLTAGE OPERATION | ||
| Regulation | Line regulation ≦ 0.01% + 3mV Load regulation ≦ 0.01% + 5mV (<10A) Load regulation ≦ 0.02% + 5mV (≧10A) |
|
| Ripple & Noise | ≦ 2mVrms (5Hz ~ 1MHz) | |
| Recovery Time | ≦ 100μS ( 50% Load change, Minimum load 0.5A ) | |
| Output range | 0 to rating voltage continuously adjustable | |
|
CONSTANT CURRENT OPERATION |
||
| Regulation | Line regulation ≦ 0.2% + 3mA Load regulation ≦ 0.2% + 3mA |
|
| Ripple Current | ≦ 5mArms (≦ 20A) ≦ 20mArms (≦ 50A) ≦ 100mArms (≦ 100A) |
|
| Output Range | 0 to rating current continuously adjustable | |
| METER | ||
| Type | 3 1/2 Digits 0.5" LED Display | |
| Accuracy | ± ( 0.5% of rdg + 2 digits ) | |
| INSULATION | ||
| Chassis and Terminal | 100MΩ or above (DC 1000V) | |
| Chassis and AC Cord | 100MΩ or above (DC 1000V) | |
| POWER SOURCE | ||
| AC120V±10%, 50/60Hz ( AC 220V or 240V order made) |
||
| ACCESSORIES | ||
| User manual x 1 Test lead GTL-105 x 1 (≦3A), or GTL-104 x 1 (≦10A), or Not available (>10A or 600V) |
||
| DIMENSIONS & WEIGHT | ||
| 430(W) x 178(H) x 572(D)mm Approx. 29.5kg |
||
