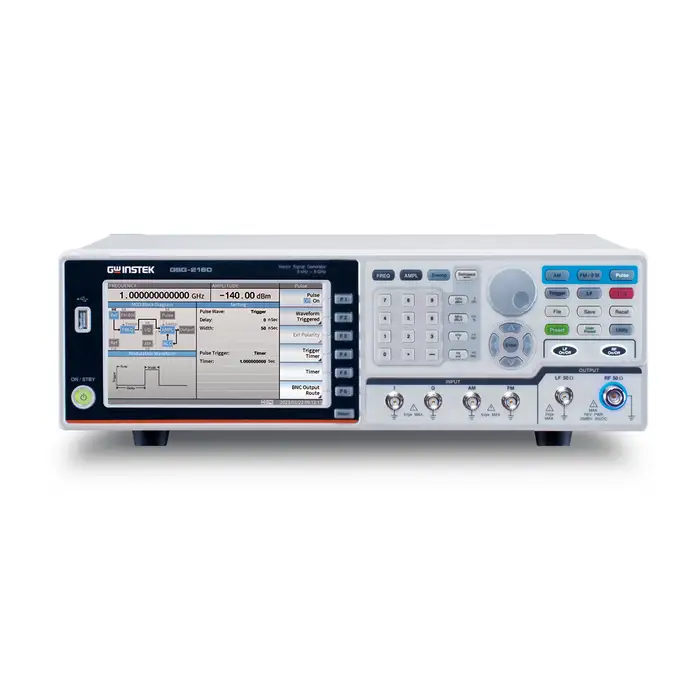

GW INSTEK GSG-2160 RF Signal Generator (9kHz ~ 6GHz; I/Q Modul;GPIB)

Frequency Range: 9kHz to 6GHz

Frequency Resolution: 1mHz

Temperature Stability: 10ppm

Aging Rate: 2ppm/year

Amplitude Range: -140dBm to +20dBm

Amplitude Setting Resolution: 0.01dBm

Amplitude Unit: dBm, dBμV, Vrms

Phase Noise: -117dBc/Hz (Typical) @1GHz Output and 20kHz Offset

Frequency/Amplitude Switching Speed: ≤5ms

Built-in LF/RF signal output, Pulse signal output

Built-in in AM, FM, PM analog signal modulation functions

Provides USB, LAN and GPIB, commands comply with SCPI standards

Supports IQ modulation signal output

+ Up to 60MHz baseband I or Q modulation signal output

+ Up to 120MHz RF I+Q modulation signal output

+ Built-in ASK, PSK, APSK, QAM, FSK, MSK, self-defined IQ/FSK digital signal modulation functions
