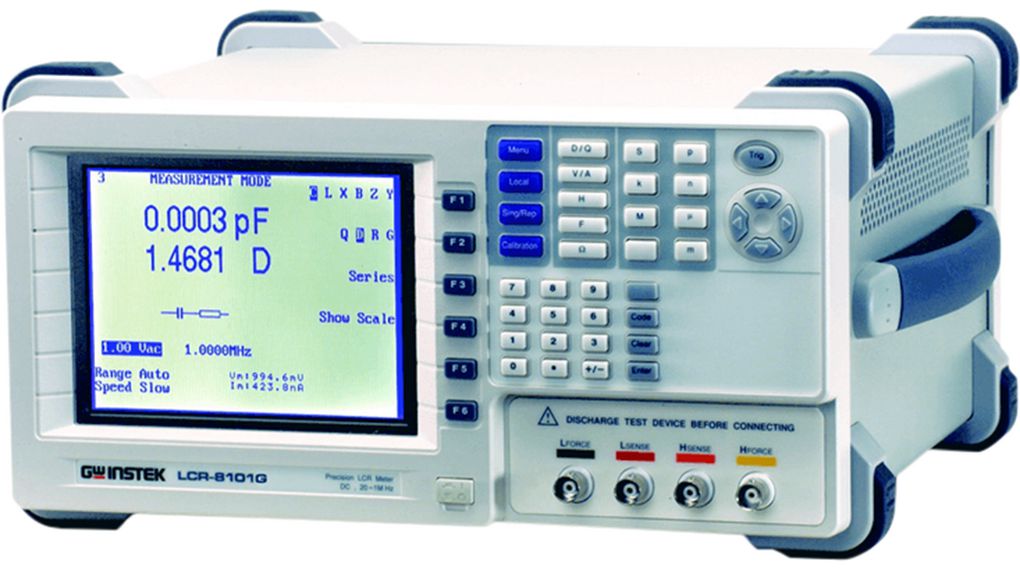

| TEST FREQUENCY | |
| 20Hz ~ 10 / 5 / 1 MHz, 5 Digits, ±0.005% | |
| INPUT IMPEDANCE | |
| 100Ω | |
| BASIC ACCURACY (*) | |
| ±0.1% (R, Z, X, G, Y, B, L, C) | |
| TEST SPEED | |
| AC (＞ 2kHz) MAX: 75mS FAST: 150mS MEDIUM: 450mS SLOW: 600mS |
DC MAX: 30mS FAST: 60mS MEDIUM: 120mS SLOW: 900mS |
| TEST SIGNAL LEVELS | |
| ≦3MHz：10mV~2Vrms, 1mV/Step or 10mV/Step, 2%±5mV ＞3MHz：10mV~1Vrms, 1mV/Step or 10mV/Step, 2%±5mV |
|
| SHORT CIRCUIT CURRENT | |
| Max. 20mA | |
| MEASUREMENT RANGES | |
| R, Z, X | 0.1mΩ ~ 100MΩ |
| G, Y, B | 10nS ~ 1000S |
| L | 0.1nH ~ 100kH |
| C | 0.01pF ~ 1F |
| D | 0.00001 ~ 9.9999 |
| Q | 0.1 ~ 9999.9 |
| θ | -180° ~ +180° |
| Rdc | 0.1mΩ ~ 100MΩ |
| MEASUREMENT PARAMETERS | |
| Impedance (Z), Phase Angle (θ), Inductance (L), Capacitance (C), AC Resistance (Rac), Quality Factor (Q), Dissipation Factor (D), Admittance (Y), Conductance (G), Reactance (X), Susceptance (B), DC Resistance (Rdc) | |
| SERIES OR PARALLEL EQUIVALENT CIRCUIT | |
| C + R, C + D, C + Q, L + R, L + Q, L + D | |
| SERIES EQUIVALENT CIRCUIT ONLY | |
| X + R, X + D, X + Q | |
| PARALLEL EQUIVALENT CIRCUIT ONLY | |
| C + G, B + G, B + D, B + Q, B + R, L + G | |
| POLAR FORM | |
| Z + Phase Angle, Y + Phase Angle | |
| AVERAGE | |
| 1 ~ 256 TIMES | |
| LCD DISPLAY | |
| 320 x 240 DOT-MATRIX | |
| INTERFACE | |
| RS-232, GPIB | |
| POWER SOURCE | |
| AC 115V(+10% / -25%), 230V(+15% / -14%) (Selectable), 50/60Hz | |
| DIMENSIONS & WEIGHT | |
| 330(W) x 170(H) x 340(D)mm, Approx. 5kg | |
