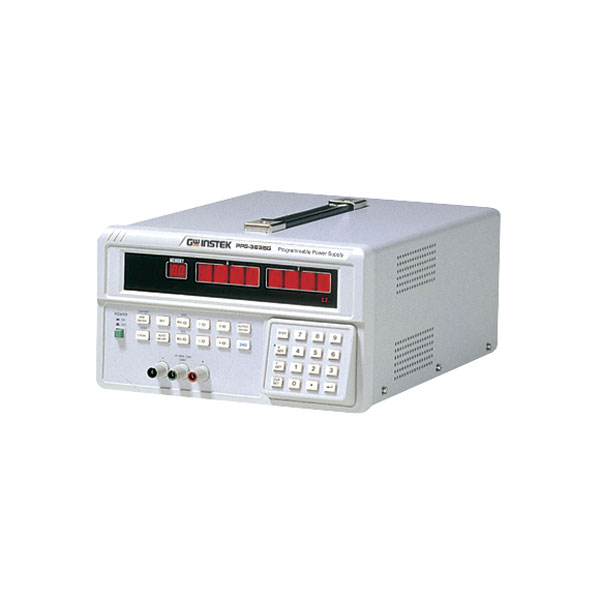

GW INSTEK PPS-3635 Programmable Linear D.C. Power Supply (36V, 3.5A, 126W, 1 CH)

Name: GW INSTEK PPS-3635 Programmable Linear D.C. Power Supply (36V, 3.5A, 126W, 1 CH)
Brand: GW INSTEK

ManufacturerGW INSTEK

ModelPPS-3635

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Power cord x 1
Test lead GTL-104 x 1

OUTPUT
Voltage	0~36V
Current	0~3.5A
OVP	0~38.5V
LOAD REGULATION
Voltage	< 3mV rear output ( < 6mV front output )
Current	< 3mA ( < 6mA rating current > 3.5A )
LINE REGULATION
Voltage	< 3mV
Current	< 3mA
RESOLUTION
Voltage	10mV ( 20mV rating voltage > 36V )
Current	1mA ( 2mA rating current >3.5A )
OVP	10mV( 20mV rating voltage > 36V )
PROGRAM ACCURACY (25±5° C)
Voltage	< 0.05% + 25mV ( + 50mV rating voltage > 36 V )
Current	< 0.2% + 10mA
OVP	< 2% + 0.6V
RIPPLE & NOISE (20Hz ~ 20MHz)
Voltage	Ripple 1mVrms / 3mVp-p Noise 2mVrms / 30mVp-p
Current	< 3mA rms ( < 5mA rms rating current > 3.5A )
TEMPERATURE (0~40° C ) COEFFICIENT
Voltage	< 100ppm + 3mV
Current	< 150ppm + 3mA
READBACK RESOLUTION
Voltage	10mV ( 20mV rating voltage > 36V )
Current	1mA ( 2mA rating current > 3.5A )
READBACK ACCURACY (25±5° C)
Voltage	< 0.05% + 25mV ( + 50mV rating voltage > 36V )
Current	< 0.2% + 10mA
RESPONSE TIME
Voltage Up(10%~90%)	< 100mS
Voltage Down(90%~10%)	< 100mS
READBACK TEMPERATURE COEFFICIENT
Voltage	< 100ppm + 10mV ( + 20mV rating voltage > 36V )
Current	< 150ppm + 10mA
DRIFT
Voltage	< 0.03% + 6mV
Current	< 0.1% + 6mA
MEMORY
	Store / Recall 100 sets
TIMER
Setting time	1 sec ~ 255 Min ( Max 255 Min x 100 sets)
Resolution	1 sec
Function	for output working loop ( Auto Step Running)
INTERFACE
	GPIB Interface Standard
POWER SOURCE
	AC100V/120V/220V/240V±10%, 50/60Hz
ACCESSORIES
User Manual X 1, Power Cord X 1 Test Lead GTL-104*1
DIMENSIONS & WEIGHT
	255(W) x 145(H) x 346(D)mm Approx. 9.5 kg
