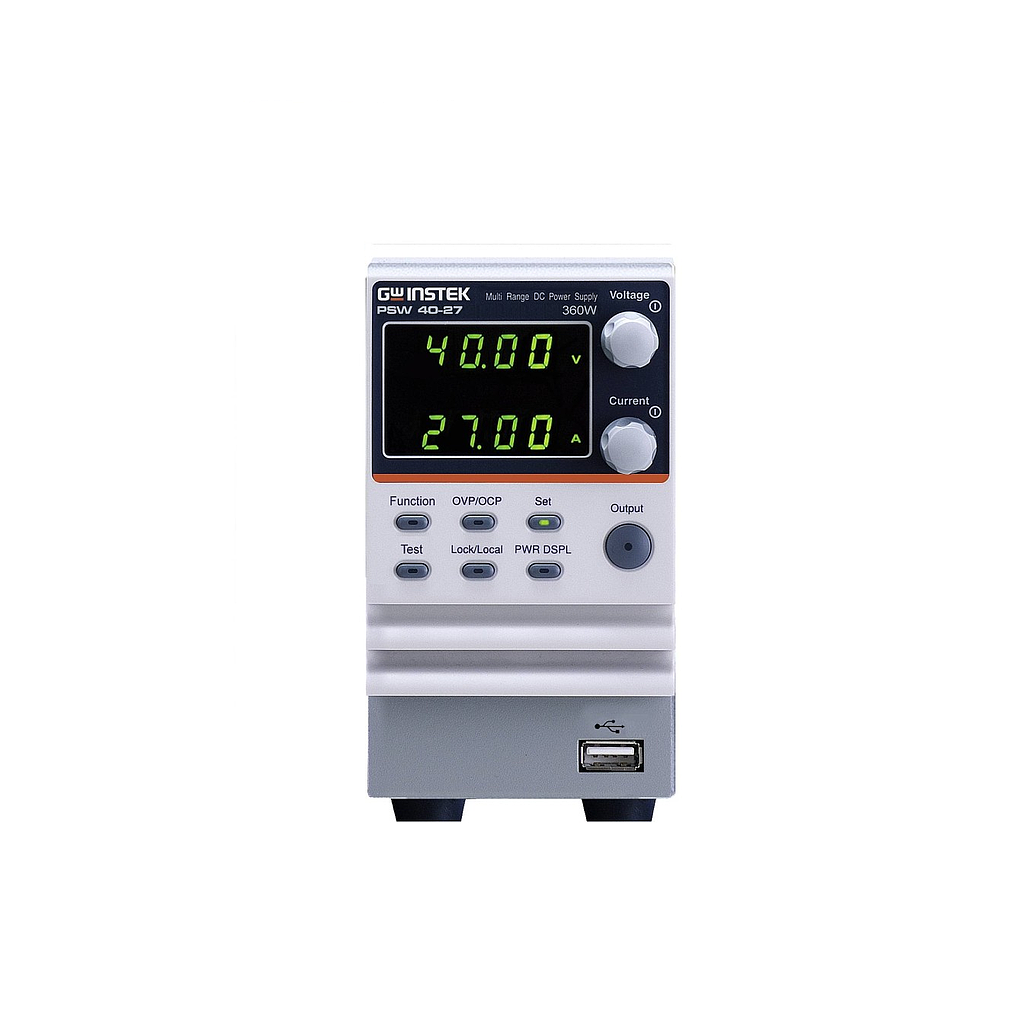

GW INSTEK PSW 40-27 Multi-Range DC Power Supply (0~40V/0~27A/360W)

OUTPUT RATING

Voltage: 0~40V

Current: 27A

Power: 360W

REGULATION(CV)

Load: 25mV

Line: 23mV

REGULATION(CC)

Load: 32mA

Line: 32mA

RIPPLE & NOISE (Noise Bandwidth 20MHz; Ripple Bandwidth=1MHz)

CV p-p: 60mV

CV rms: 7mV

CC rms: 54mA

PROGRAMMING ACCURACY

Voltage: 0.1% + 10mV

Current: 0.1% + 20mA

MEASUREMENT ACCURACY

Voltage: 0.1% +10mV

Current: 0.1% +20mA

RESPONSE TIME

Raise Time

Fall Time(Full Load): 50ms

Fall Time(No Load): 50ms

Load Transient Recover Time: 500ms

(Load change from 50~100%): 1ms

PROGRAMMING RESOLUTION (By PC Remote Control Mode)

Voltage: 1mV

Current: 1mA

MEASUREMENT RESOLUTION (By PC Remote Control Mode)

Voltage: 1mV

Current: 1mA

SERIES AND PARALLEL CAPABILITY

Parallel Operation: Up to 3 units including the master unit

Series Operation: Up to 2 units including the master unit

ENVIRONMENT CONDITION

Operation Temp: 0 ~ 50 ℃

Storage Temp: -25 ~ 70 ℃

Operating Humidity: 20% ~ 85% RH; No condensation

Storage Humidity: 90% RH or Less; No condensation

OTHER:

Analog Control: Yes

Interface: USB/LAN/GPIB-USB(Option)/RS232-USB(Option)

Fan: With thermal sensing contro

POWER SOURCE: 85VAC~265VAC, 47~63Hz, single phase
