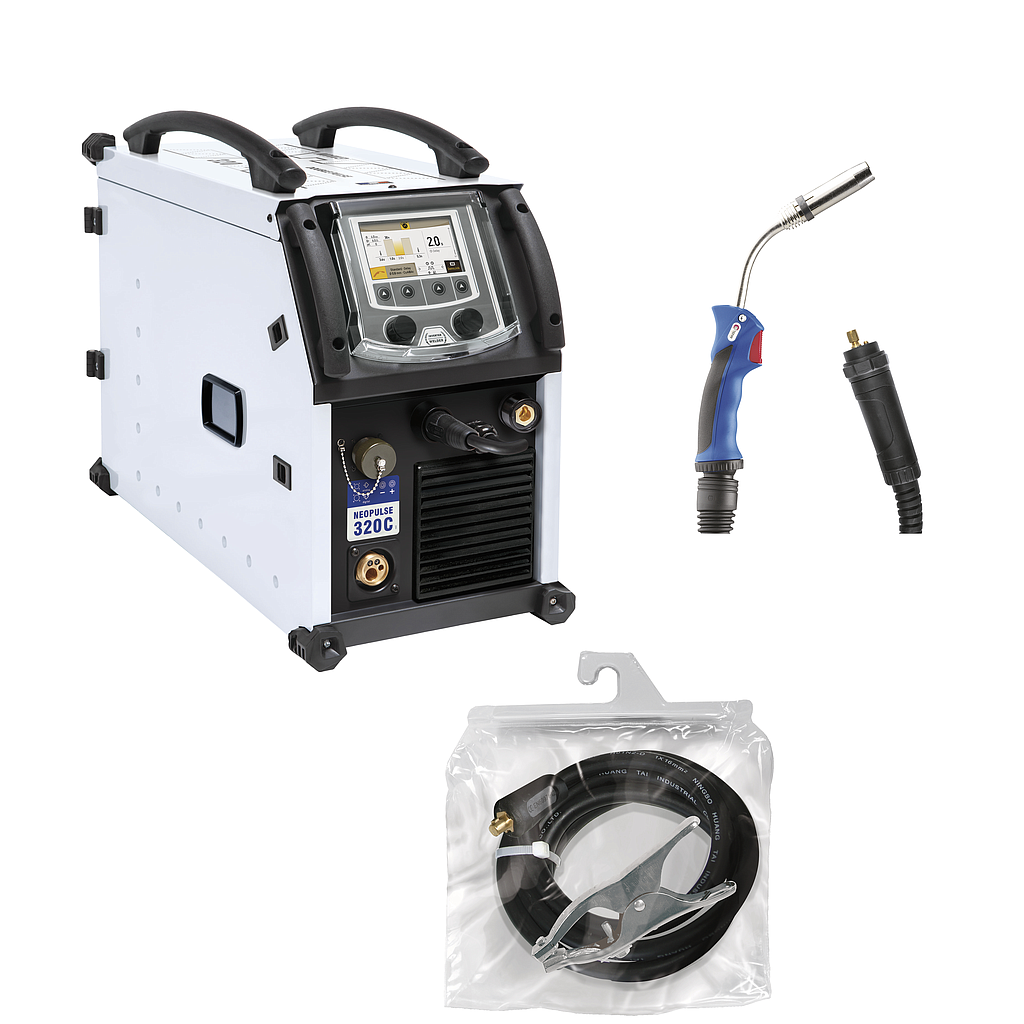

STANDARD DELIVERY:
1. NEOPULSE 320 C
The NEOPULSE 320 C is a digital 3 phase MIG/MAG pulse welding machine. Designed for the highest performance level using the latest technology, it features numerous synergic curves and exceptional arc quality/performance. User friendly and highly practical, the digital interface is designed for quick and easyadjustments of the welding parameters. Equipped with a precise 4-Roll drive system, this powersource provides unparalleled productivity and welding quality on all types of materials.
MULTI-PROCESS WELDING
▪ MIG/MAG :
- steel wire: Ø 0.6 to 1.2 mm
- stainless steel wire: 0.8 to 1.2 mm
- aluminium wire: Ø 0.8 to 1.2 mm
- CuSi and CuAl wire: 0.8 to 1.2 mm
▪ PULSED / DC MMA: basic, rutile and cellulosic electrodes (up to Ø 5 mm).
▪ PULSED / DC LIFT TIG
SMART
▪SYNERGY mode: after selecting the material/gas combination and the wire diameter the NEOPULSE 320 C will automatically work out the optimal welding settings whilst still allowing you to adjust the settings (wire-feed speed, voltage, current and arc length).
ACCURATE
▪Calibration of the weiding cables and motor speed, in order to adjust the voltage displayed and refine the energy calculation.
▪Energy, display and energy calculation after welding based on standards EN1011-1, ISO/TR 18491 and QW-409. Portability: load/save user JOBS and machine settings using a USB stick.
▪Traceability: track/record all welding steps, weld by weld, during industrial manufacturing in line with standard EN ISO 3834.
OPTIMISED MIG/MAG SETTINGS
▪ Welding processes: Manual, Dynamic STD, Pulsed, Arc Module (variation of hot/ co current)
▪ TACK modes: SPOT and DELAY.
▪ Trigger options supported: 2T and 4T.
▪ Precise control over the welding cycle: CreepSpeed, Softstart, Hotstart, Upslope, Downslope, Crater Fill, Postgas, etc.
MAXIMUM PRODUCTIVITY
Intended for heavy and demanding industrial applications:
▪ 4 microprocessors increase the speed of communication and optimize the efficiency of the power source.
▪ High productivity thanks to high duty cycle (300 A @ 60%).
▪ Compatible wire reels: Ø 200 / 300 mm.
▪ Connectable via a SAM control interface for use on robot/automaton (optional).
▪ Robust design to withstand shock and vibration
▪ Powerful electronically controlled wire feed motor (100 W) with 4 active drive rolls.
▪ Very high arc voltage for easier ignition and exceptional arc dynamic.
Specifications:
Power supply: 400 V, 3 ph, 50/60 Hz
Fuse: 32 A
Rate current output: 10-320 A
Duty cycle (environment temp. at 40°C):
- Imax 320 @ 40%
@ 60%: 300 A
@ 100%: 280 A
Motor speed: 1 - 22 m/min, 4 motorized rollers
Cooling unit: WCU 1kW C (option)
Supported wire reels: Ø200-300 mm
Wire diameter:
+ Steel: 0.6 - 1.2 mm
+ Inox: 0.8 - 1.2 mm
+ Aluminum: 0.8 - 1.2 mm
+ CuSi/CuAl: 0.8 - 1 mm
+ Cored wire: 0.9 - 1.6 mm
No-load voltage: 85 V
Protection level: IP 23
Dimensions (L x w x h): 68 x 30 x 55 cm
Weight: 36 kg
Standard: IEC 60974-1/5/10 A
Original equipment (roller): 1.0/1.2 - F (steel, inox)
2. Roller type F (x4) original equipment Ø 1.0/1.2 (thép/ inox)
3. Earth cable (4 m) 600A-70mm²- 036994
4. Torch MIG/MAG GRIP steel 350A-4m 040946
