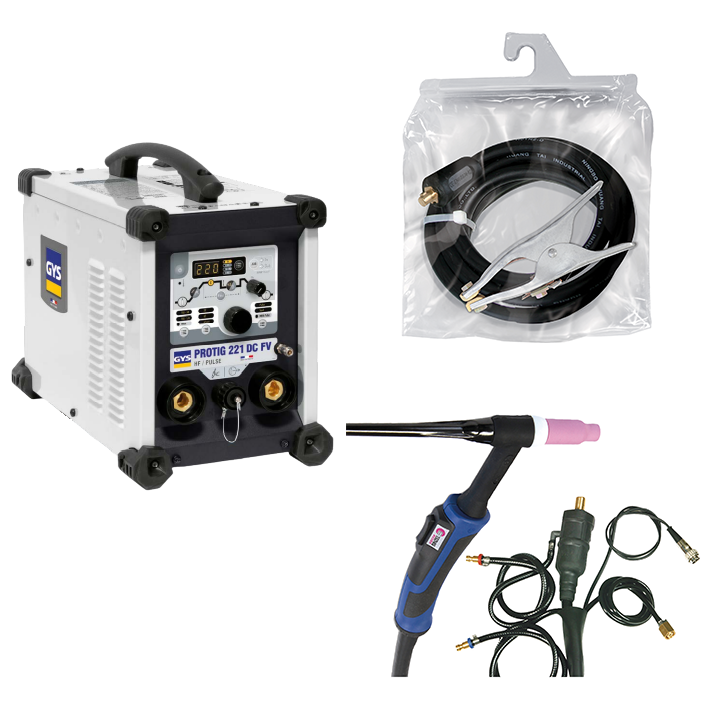

GYS PACK PROTIG 221 DC FV ADB1 TIG (GTAW) and MMA (SMAW) Welding Machine Set (1ph; 230V; 220A; TIG Torch SR26 DB)

STANDARD DELIVERY:

1. PROTIG 221 DC FV

Power supply: 230V, 1 ph, 50/60 Hz

Fuse: 16A

Normal current output (MMA): 10-200 A

Normal current output (TIG): 5-220 A

Maximum welding current: 220 A

No-load voltage: 76V

Duty cycle (environment temperature at 40°C):

- TIG (230 V / 16 A)

220 A/18.8 V @ 35%

165 A/16.6 V @ 60%

150 A/16.0 V @ 100%

- MMA (230 V / 16 A)

200 A/28 V @ 25%

135 A/25.4 V @ 60%

120 A/24.8 V @ 100%

Dimensions (L x w x h): 42.5x23x29.5 cm

Weight: 11kg

Protection class: IP21

Standard: IEC 60974-1/3/10 A

2. TIG Torch GRIP- SR26 DB (046177)

3. Earth clamp with cable 250 A 4 m / 25 mm²- 043794

Manual
