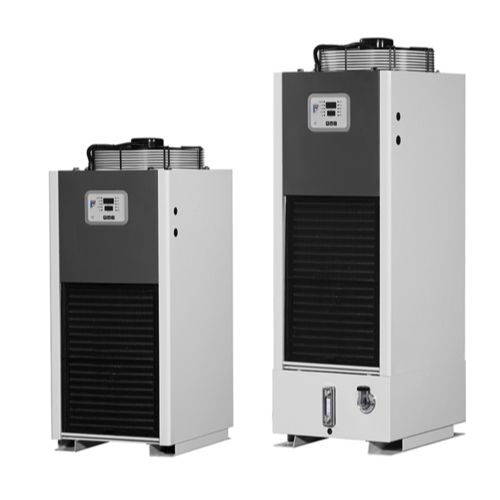

Habor HBO-4RPS Oil Chiller (10000/12000 KCAL/H; 11630/13960 W; 40000/48000 BTU/H)

Cooling capacity:

KCAL/H 50/60Hz: 10000/12000

W 50/60Hz: 11630/13960

BTU/H 50/60Hz: 40000/48000

Temperature controller:

A: Fixed temperature control type (setting range 10~40 ºC)

B: Differential temperature control type (tracing ambient/machine body temperature, setting range -9.9~+9.9℃)

Use range:

Ambient temperature ℃: 10~40℃ (Standard)

Oil temperature ℃: 10~45℃

Power source: 3Ø 200~230V 50/60Hz

Max. pressure loss (kgf/cm²): 3.0

Oil viscosity: Hydraulic oil, lubrication oil 4-300 cSt

Tank capacity (optional): 90L

Dimension (WxDxH, mm):

Without tank: 1085x740x1400

With tank: 1085x780x1400

Weight (KG):

Without tank: 291

With tank: 325

Noise level: Below 80 dB(A)
