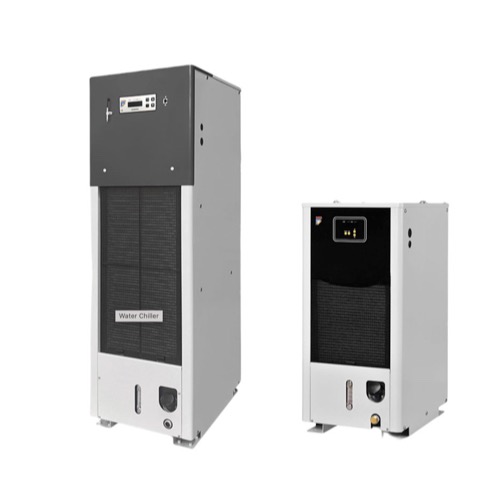

Habor HWK-4RPTS Water Chiller (0000/12000 KCAL/H; 11630/13960 W; 40000/48000 BTU/H)

Cooling capacity

KCAL/H 50/60Hz: 10000/12000

W 50/60Hz: 11630/13960

BTU/H 50/60Hz: 40000/48000

Temperature controller

A: Fixed temperature control type (setting range: 10-40 °C)

B: Differential temperature control type (tracing ambient/machine body temperature, setting range: -9.9 to +9.9 °C)

Use range

Ambient temperature: 10-40°C (Standard)

Liquid temperature: 10-30°C

Power source: 3Ø 200-230V 50/60Hz

Compressor (Power in W)

Motor: 4400

Fan: 500

Pump: 1510

Pump flow rate (L/min)

50Hz: 60

60Hz: 80

Max Lift from pump (M)

50Hz: 36

60Hz: 53

Piping diameter

Inlet: PT 3/4"

Outlet: PT 3/4"

Water tank capacity: 90L

Dimension WxDxH (mm): 1085x780x1400

Weight (KG): 253

Noise level: Below 80 dB(A)

Details

Datasheet
