The main technical parameters:
Unit (switchable): Kg, Lb, N
Capacity (optional): 2 T
Load Resolution: 1/100,000
Load Accuracy: ≤0.5%
Test Space (L×W×H): 1200×1200×1200mm
Speed of Compression: 10 ± 3 mm/min
Operation Mode: PC
Report Items: Serial number, Peak value, Average value, Designated holding pressure value; all memorable
Structure: AC Frequency Conversion Motor ( Taiwan); Ordinary screw rod
Dimension (L×W×H): 2000×1200×2030mm
Power: 1ø, 220v/ 50Hz
Weight: Approx.730kg
Safety Devices: Overload protection, overvoltage protection & limited position protection device
Standard: TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642
1.Uses

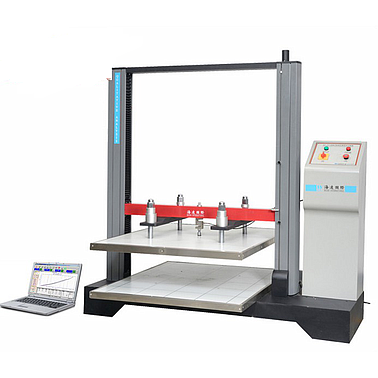

ASTM-D642 carton compressive testing equipment Mainly used in the various types of secondary normal size corrugated carton compressive strength test or other material made of compressive strength of packaging container FCL compressive strength test and test, such as food and beverage instant noodles packing, cosmetic packaging, beer packing, cereals and oil and so on the packaging. ASTM-D642 carton compressive testing equipment control accuracy is high, the development of advanced technology, for the present domestic the most cost-effective one universal carton compression tester.
2.Design criteria:
TAPPI-T804，JIS-20212，GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3，GB/T4857.4
3.Test Principles:
Test samples in test enginery two parallel between linking piece, and then even to put pressure on record load and linking piece displacement, until the test sample fracture, or load or linking piece a says to the expected value so far.
4.Features:
ASTM-D642 carton compressive testing equipment using a single-screen operation; do not need to switch the screen;
With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
Choosing translational, comparative mode at the same time to make a number of curve data comparison;
With a variety of measurement units, Measure In Imperial & Metric are switchable;
With self-return & auto-correction function;
With automatic magnification function, in order to achieve the most appropriate size of the graphics;
With the user-defined Test methods; with experimental data analysis function;
ASTM-D642 carton compressive testing equipment can do test of compression, bending, pressure holding & fatigue.
ASTM-D642 carton compressive testing equipment with high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.
Using a single-screen operation; do not need to switch the screen;
With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
