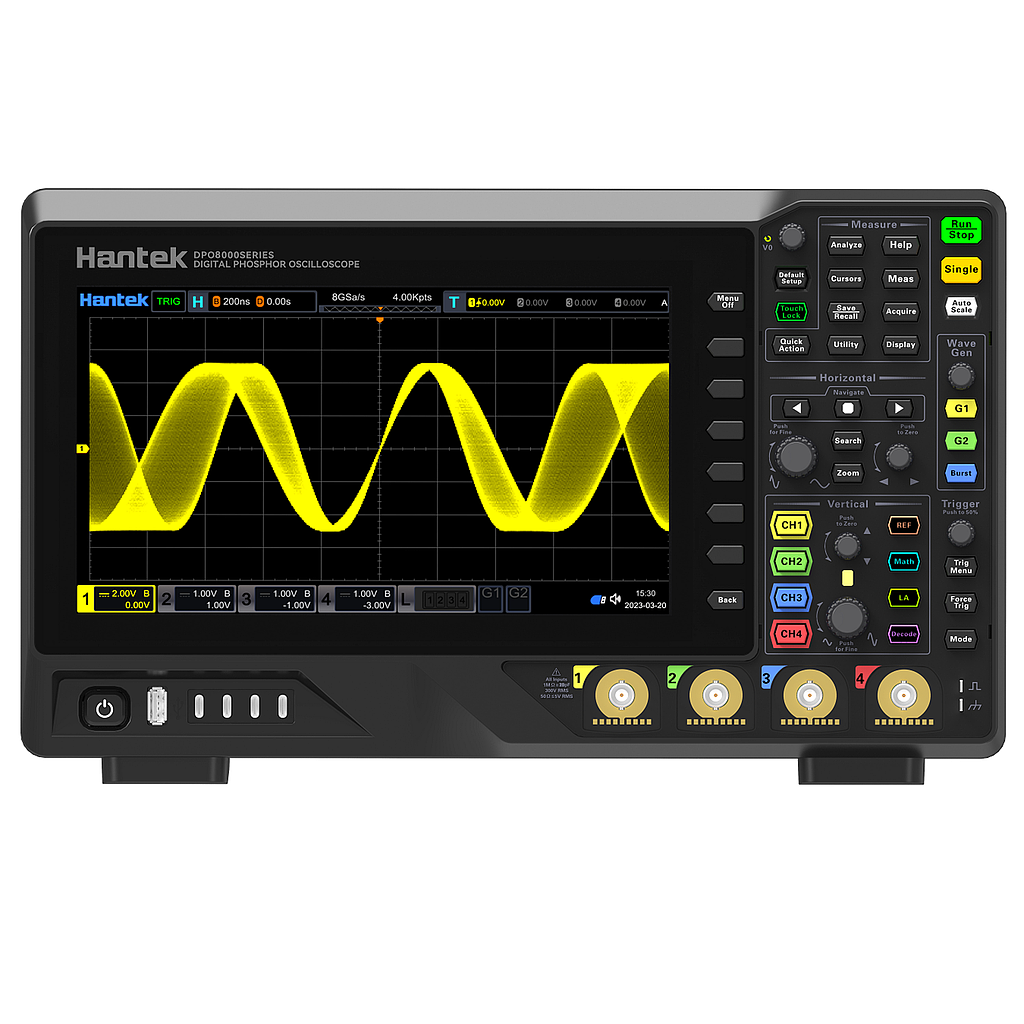

Channels: 4 Channel Oscilloscope+2 Channel Waveform Generator +16 Channel Logic Analyzer
Bandwidth: 1GHz
Sampling Rate: 8GSa/s single channel, 8GSa/s half channel, 4GSa/s all channel
Memory Depth: 2Gpts (single channel), 1Gpts (dual channel), 500Mpts (three-four channels)
Waveform Capture Rate: 600,000 wfms/s [25ns dot display single channel automatic memory depth]
Vertical Resolution: 8 bit
Input Sensitivity: 1 MΩ： 500μV/div ~ 10 V/div；50 Ω：500μV/div ~ 1 V/div
Timebase Range: 200ps/div~1ks/div
Timebase Accuracy: ±1 ppm ± 1 ppm/year
Bandwidth limit: 20 MH, 100MHz, 200MHz, 350MHz, 650MHz, 750MHz (Independent optional for each channel)
Trigger Type: Edge, Pulse, Video, Slope, Overtime, Window, Logic，Overamp, Runt, Pattern, Delay, Setup/Hold, Nth Edge, UART, LIN, CAN, SPI, I2C
Serial Bus Decode: UART, I2C, SPI, LIN, CAN
Arithmetic: A+B, A-B, A*B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, LowPass, HighPass, BandPass, BandStop, AX+B, Expression
Automatic Measurements: 51 measurements, measurements update continuously with statistics
Analyze: Frequency meter, DVM, Power Analyzer, Histogram, Search, Navigate, Record, Bode Set
Recorder: More than 2 million frames (single channel)
Input Coupling: DC, AC or GND
Input Impedance: 1 MΩ ± 1%，50 Ω ± 1% ；21 pF ± 3 pF
Waveform Generator:
+ Sampling Rate: 1GSa/s
+ Amplitude Resolution: 16 bit
+ Max. Frequency: 200MHz
+ Wavefrom:Sine, Square, Pulse, Ramp, Noise, DC, Sinc, Exp.rise, Exp.fall, Lorentz, Gauss, ECG, Haversine and other 13 standard waveforms
Digital Channels: Input Channels: 16CH
Connectivity: USB HOST, USB DEVICE, LAN; Option ports: HDMI, RS232
Display: 10.1 inch capacitive multi-touch, 256 intensity levels, color graded persistence
