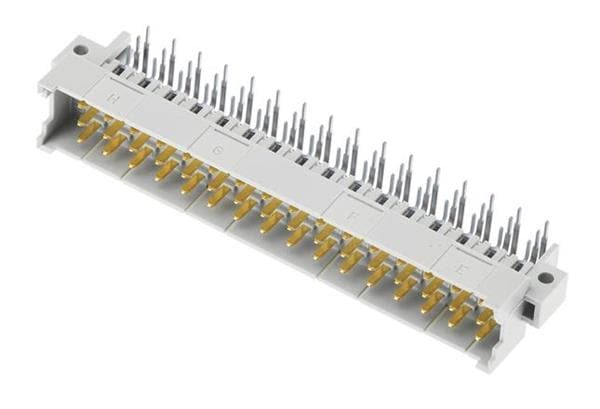

HARTING 09061486901222 Type F DIN-POWER F048MS-3,0C1-2-NFF
Manufacturer: HARTING Model: 09061486901222 - Contact
Pitch: 2.54 mm
Gender: Male
Rows Loaded: z + b + d
Tail Length: 3 mm
Unit Weight: 24.720 g
Housing Color: Gray
Contact Gender: Male
Current Rating: 6 A
Mounting Angle: Right Angle
Mounting Style: Through Hole
Number of Rows: 3 Row
Contact Plating: Gold
Contact Material: Copper Alloy
Housing Material: Thermoplastic (TP)
Termination Style: Solder Pin
Number of Positions: 48 Position
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
