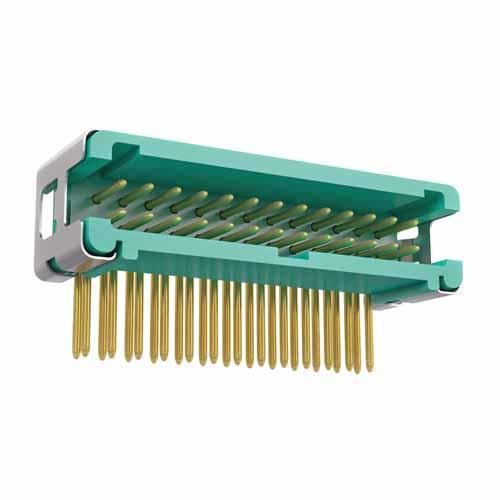

Pitch: 1.25 mm (0.049 in)
Application: Wire-to-Board
Row Spacing: 1.25 mm (0.049 in)
Unit Weight: 867 mg
Housing Color: Green
Latching Type: Unlatched
Contact Gender: Pin (Male)
Current Rating: 2 A
Mounting Angle: Right Angle
Mounting Style: Through Hole
Number of Rows: 2 Row
Contact Plating: Gold
Contact Material: Phosphor Bronze
Housing Material: Nylon
Termination Style: Solder Pin
Flammability Rating: UL 94 V-0
Number of Positions: 26 Position
Insulation Resistance: 1 GOhms
Termination Post Length: 3.3 mm (0.13 in)
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 65 C
