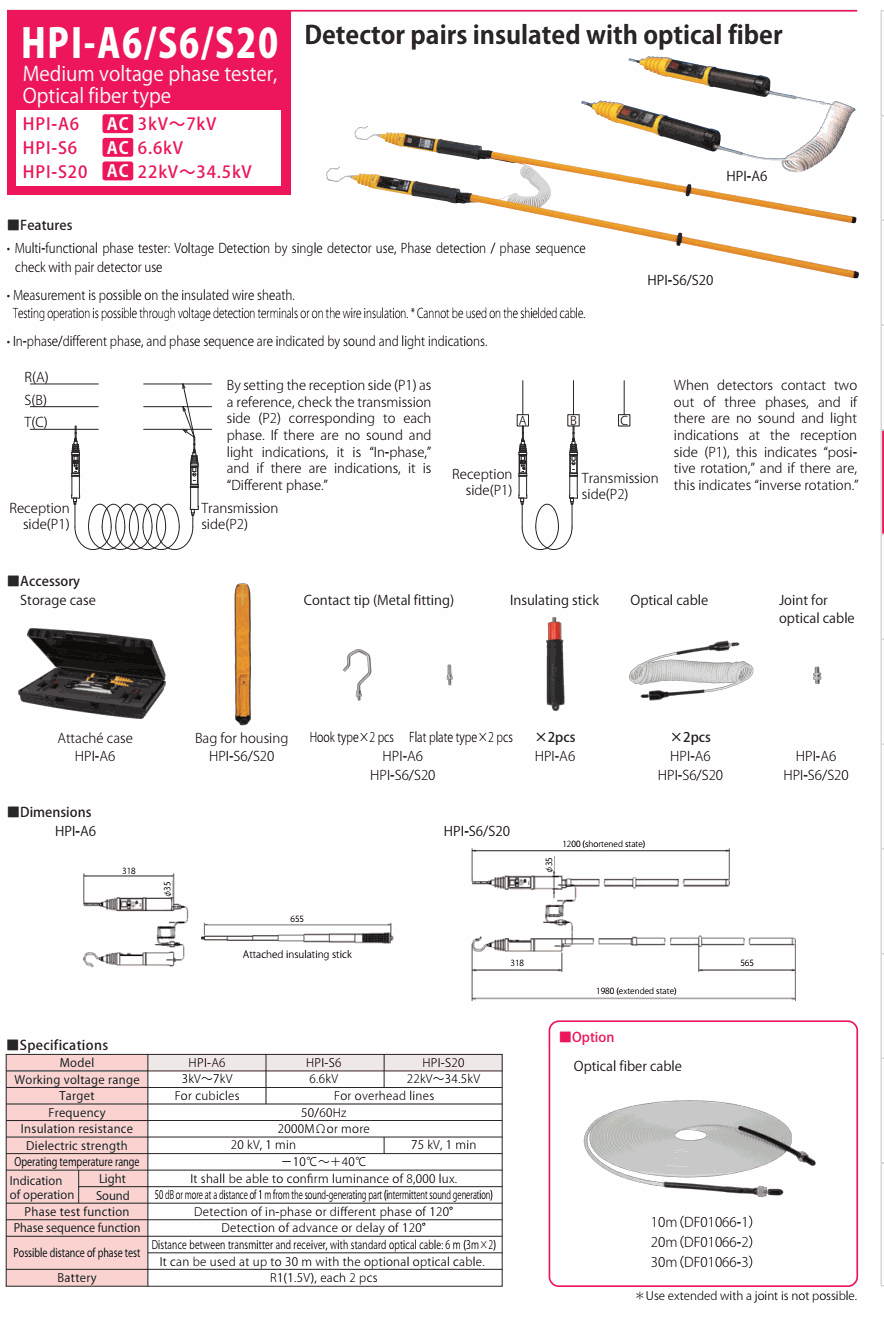

HASEGAWA HPI-A6 Medium Voltage Phase Checker (3kV～7kV)

■Specifications

Working voltage range: 3kV～7kV

Target: For cubicles

Frequency: 50/60Hz

Insulation resistance: 2000MΩ or more

Dielectric strength: 20 kV, 1 min

Operating temperature range: － 10℃～＋ 40℃

Indication of operation:

Light: It shall be able to confirm luminance of 8,000 lux.

Sound: 50 dB or more at a distance of 1 m from the sound-generating part (intermittent sound generation)

Phase test function: Detection of in-phase or different phase of 120°

Phase sequence function: Detection of advance or delay of 120°

Possible distance of phase test: Distance between transmitter and receiver, with standard optical cable: 6m (3m×2)

It can be used at up to 30 m with the optional optical cable

Battery: R1(1.5V), each 2 pcs

■Accessory:

Storage case: Attaché case

Contact tip (Metal fitting): Hook type×2 pcs, Flat plate type×2 pcs

Insulating stick x2

Optical cable x2

Joint for optical cable

■Option: Optical fiber cable

10m (DF01066-1)

20m (DF01066-2)

30m (DF01066-3)
