■ Specifications
Working voltage range:
- AC: 6600V
- DC: 600～7000V
Operation starting voltage (Voltage to ground):
- AC: 2000V±20％
- DC: 400V±20％
Frequency (AC): 50/60Hz
Grounding system: Clip
Indication of operation:
- Light: It can be confirmed in the luminance of 8,000 lux
- Sound: Intermittent sound
Battery: 6R61 or 6F22(9V) × 1 pcs
Weight: About 3,140g
Dielectric strength: Between contact tip (metal fitting) and grounding terminal: 14,000 VAC, 5 min
Leakage current: Leakage current at dielectric strength test: 1 mA or less
■ Accessory: Common bag, Clip-type grounding wire (7m)

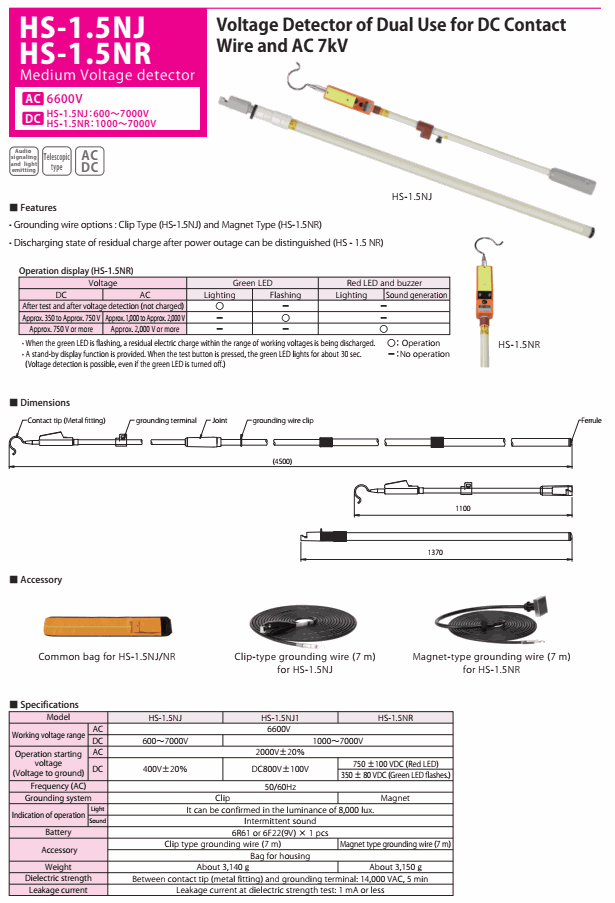

Datasheet
