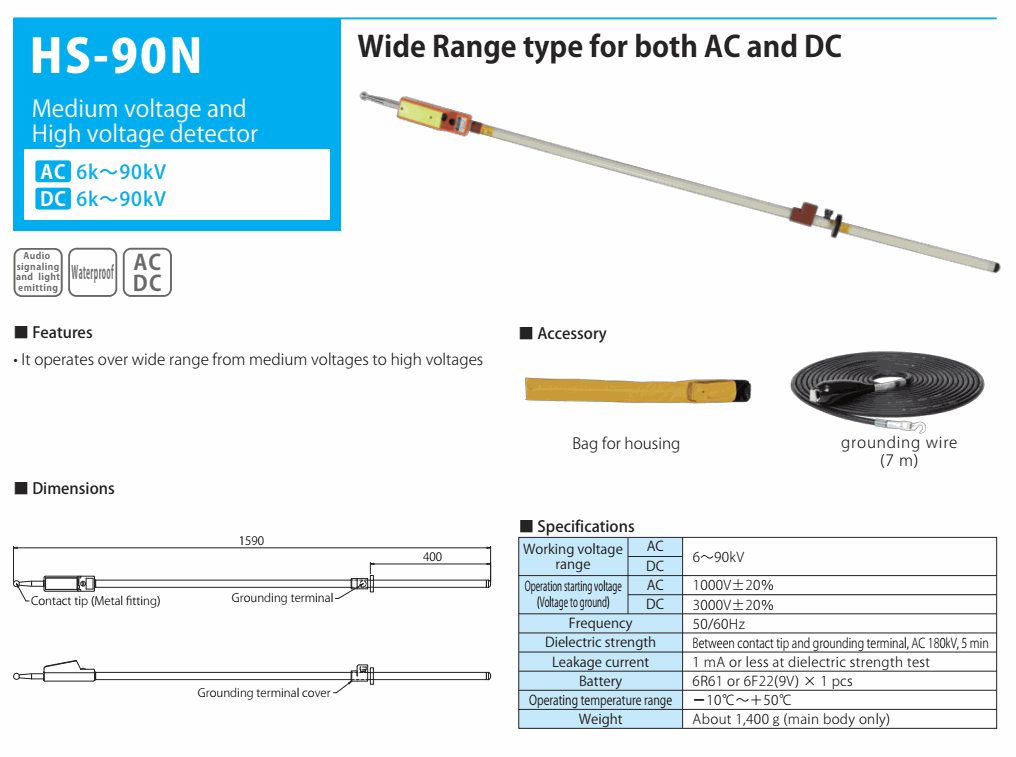

■ Specifications:
Working voltage range: AC/DC: 6～90kV
Operation starting voltage (Voltage to ground):
AC: 1000V±20％
DC: 3000V±20%
Frequency: 50/60Hz
Dielectric strength: Between contact tip and grounding terminal, AC 180kV, 5 min
Leakage current: 1 mA or less at dielectric strength test
Battery: 6R61 or 6F22(9V) × 1 pcs
Operating temperature range: －10℃～＋50℃
Weight: About 1400 g (main body only)
■ Accessory: Bag for housing, grounding wire (7 m)
■ Features:
• It operates over wide range from medium voltages to high voltages
