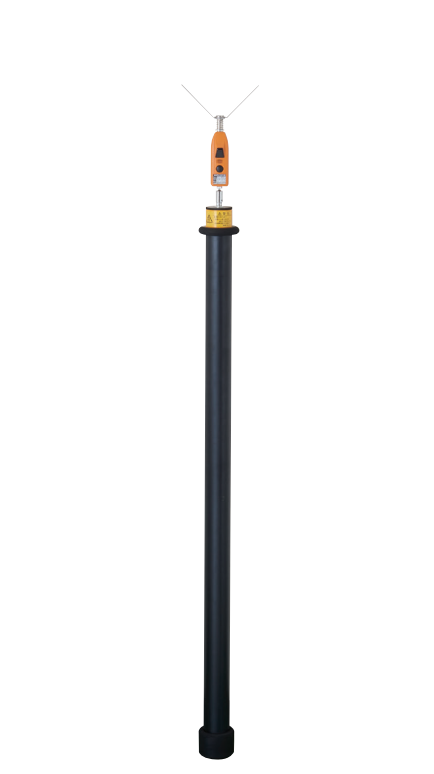

HASEGAWA HST-W80L Medium Voltage & High Voltage Detector (AC 20kV～80.5kV)
Manufacturer: HASEGAWA Model: HST-W80L Origin: Japan Guarantee: 12 Month - Contact
■ Specifications
Working voltage range: AC: 20kV～80.5kV
Operation starting voltage: AC: 5,000V±1,000V
Frequency: 50/60Hz
Dielectric strength:
- on insulating stick AC 75kv/300mm for 1minute. (insulating stick excluding contact tip and joint)
- 3 places
Leakage current: 0.1mA or less during dielectric strength test (1 place)
Battery: LR44(1.5V) × 2 pcs
Life of the battery: About 4 hr. under continuously operating state
Operating temperature range: 10℃～＋50℃
Weight: About 3kg
■ Accessory: Bag for housing（DA14006）
Details

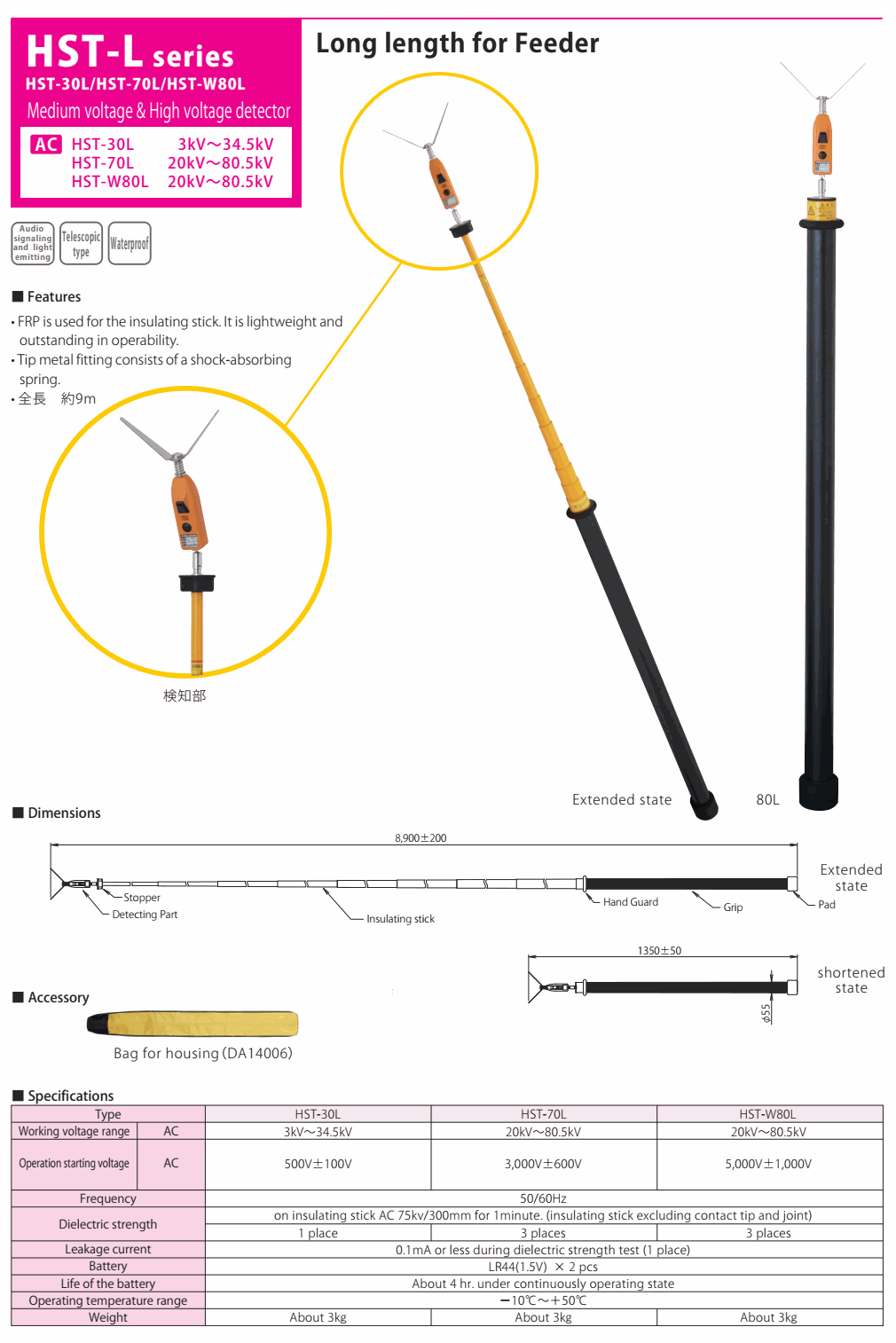

Datasheet
