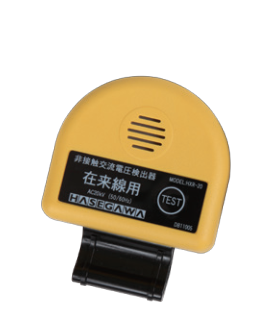

HASEGAWA HXR-20 Medium Voltage Hot-line Proximity Alarm (AC 20kV; 2.500 V/m)
Manufacturer: HASEGAWA Model: HXR-20 Origin: Japan Guarantee: 12 Month - Contact

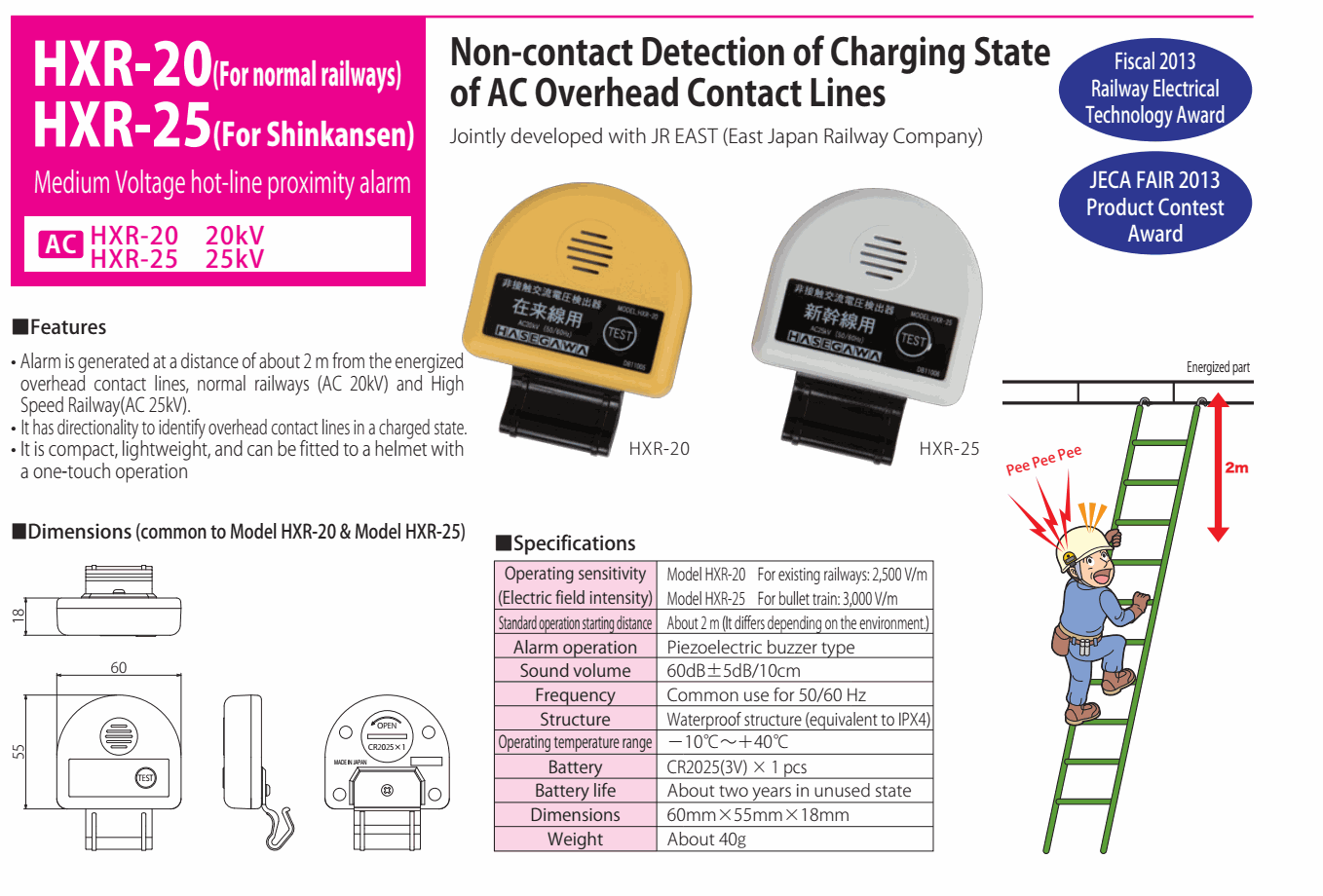

■ Specifications
Operating sensitivity (Electric field intensity): 2.500 V/m
Standard operation starting distance: About 2m (It differs depending on the environment)
Alarm operation: Piezoelectric buzzer type
Sound volume: 60dB±5dB/10cm
Frequency: Common use for 50/60Hz
Structure: Waterproof structure (equivalent to IPX4)
Operating temperature range: － 10℃～＋ 40℃
Battery: CR2025(3V) × 1 pcs
Battery life: About two years in unused state
Dimensions: 60mm×55mm×18mm
Weight: About 40g
Details
Datasheet
