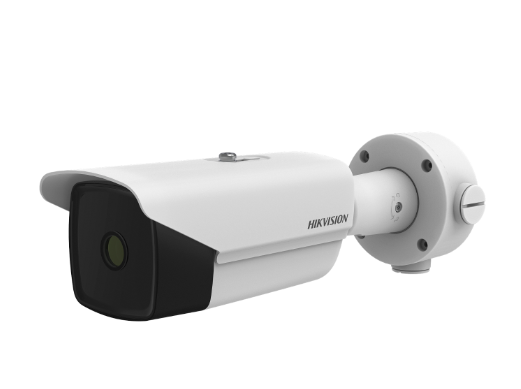

HIKMICRO DS-2TD2166-35/V1 Thermal Network Bullet Camera (640×512 pixel, -20°C~150°C)

Thermal Module

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays

Max. Resolution:  640 × 512

Pixel Interval:  17 μm

Response Waveband:  8 μm to 14 μm

NETD:  less than 40mk (@25°C,F#=1.0)

Lens (Focal Length):  35 mm

MRAD:  0.49 mrad

Field of View:  17.67°× 14.18°(H × V)

Min. Focusing Distance:  30 m

Aperture:  F 1.0

Smart Function

VCA (Video Content Analysis):  4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.

Temperature Measurement:  3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).

Temperature Range:  -20 °C to 150 °C (-4 °F to 302 °F)

Temperature Accuracy:  ±8 °C (14.4 °F)

Fire detection:  Dynamic fire point detection, up to 10 fire points detectable.

Integration

Alarm Input:  2-ch inputs (0-5V DC)

Alarm Output:  2-ch relay outputs, alarm response actions configurable

SD Memory Card: Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128G), support manual/alarm recording

General

Menu language:  English

Power:  24 VAC± 25%, 12 VDC± 20%, two-core terminal block, PoE (802.3at, class 4)

Power Consumption:  24 VAC± 25%: 0.92 A, 12 VDC ± 20%: 1.9 A, max. 8W (22W with De-icing Heater On), PoE (802.3at, class 4): 42.5 V to 57 V, 0.4 A to 0.5 A

Working Temperature/Humidity:  -40 °C to 65 °C (-40 °F to 149 °F), 90% or less

Protection Level: IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage transient protection

Dimensions:  352.4mm × 113.5mm × 113mm (13.9" × 4.45" × 4.45")

Weight:  Approx. 2kg (4.41lb)
