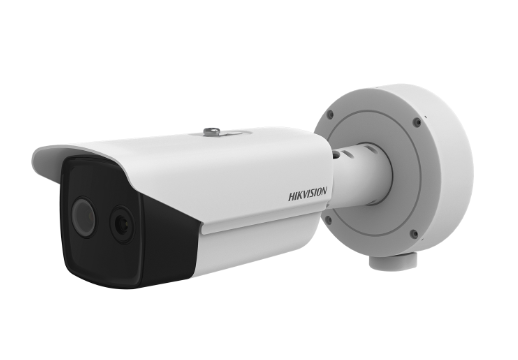

HIKMICRO DS-2TD2617-3/PI Thermal Network Bullet Camera (160 × 120 pixel, -20~150°C)

Thermal Module

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays

Resolution: 160 × 120 (the resolution of output image is 320 × 240)

Pixel Interval: 17μm

Response Waveband: 8 μm to 14 μm

NETD (Noise Equivalent Temperature Difference): ≤ 40 mk (25 °C, F# = 1.1)

Focal Length: 3.1 mm

IFOV: 5.48 mrad

Field of View: 50° × 37.2° (H × V)

Min. Focusing Distance: 0.2 m

Aperture: F 1.1

Digital Zoom: ×2, ×4, ×8

Optical Module

Image Sensor: 1/2.7" Progressive Scan CMOS

Resolution: 2688 × 1520

Min. Illumination: Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)

Shutter Speed: 1 s to 1/100,000 s

Focal Length: 4 mm

Field of View: 84° × 44.8° (H × V)

Aperture: F1.6

WDR: 120 dB

Image Effect

Picture in Picture: Display partial image of thermal channel on the full screen of optical channel

Bi-spectrum Image Fusion: Display the details of optical channel on thermal channel

Target Coloration: Yes. Supported in white hot and black hot mode.

Smart Function

VCA (Video Content Analysis): 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.

Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).

Temperature Range: -20 °C to + 150 °C (-4 °F to + 302°F)

Temperature Accuracy: ± 8 °C (± 14.4 °F)

Fire Detection: Dynamic fire detection, up to 10 fire points detectable.

Illuminator

IR Distance: Up to 40 m

IR Intensity and Angle: Automatically adjusted

General

Menu language: 32 languages

Power: 12 VDC± 25%, two-core terminal block PoE (802.3af, class 3)

Power Consumption: 9 VDC to 15 VDC: 0.65A, max. 7.5 W PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8.0 W

Working Temperature/Humidity: Temperature: -40 °C to 65 °C (-40 °F to 149 °F) Humidity: 95% or less

Protection Level: IP66 Standard TVS 6000V lightning protection, surge protection, voltage transient protection

Dimensions: 354 mm × 144.1 mm × 156.7 mm (13.94" × 5.67" × 6.17")

Weight: Approx. 1.76 kg (3.88 lb)
