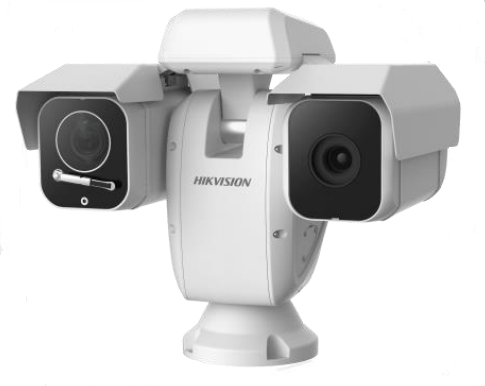

HIKMICRO DS-2TD6236T-50H2L Thermometric Thermal & Optical Bi-spectrum Network (384 × 288 pixel, -20~550°C)

Thermal module

Image sensor: Vanadium Oxide Uncooled Focal Plane Arrays

Max. Resolution: 384 × 288

Detector Pitch: 17μm

Response waveband: 8μm to 14μm

NETD: < 40mk (@25°C,F#=1.0)

Lens (focal length): 50mm

MRAD: 0.34

Field of View: 7.47° x 5.61°

Min. Focusing Distance: 7.5m

F number: 1.0

Optical camera

Image Sensor: 1/1.9’’ Progressive Scan CMOS

Min. Illumination: Color: 0.002 lux @ (F1.5 , AGC On ) B/W : 0.0002 lux @ (F1.5 , AGC On )

Focal Length: 5.7-205.2mm, 36x

Digital Zoom: 16 X

Field of View: 58.7° - 2.0° (Wide-Tele)

Min. Working Distance: 10-1500mm (Wide-Tele)

Aperture Range: F1.5-F4.5

Focus Mode: Auto / Semiautomatic / Manual

WDR: 120dB

Smart function

VCA: Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), 10 scenes and 8 VCA rules for each scene.

Temperature Measurement: Support 3 temperature measurement rule types, over 256 presets as scene, 21 rules of each scene (10 points, 10 regions, and 1 line)

Temperature range: -20 °C to 550 °C (-4 °F to 1,022 °F)

Temperature accuracy: Max (±2°C, ±2%)

Fire detection: Support 10 fire points

General

Menu: English

Wiper: Yes

Power: 24V AC, 120W

Work Temperature/Humidity: From -40°C to 60°C (-40°F to 140°F); Humidity: 90% or Less

Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Weight: Approx. Approx. 19kg (41.89lb)
