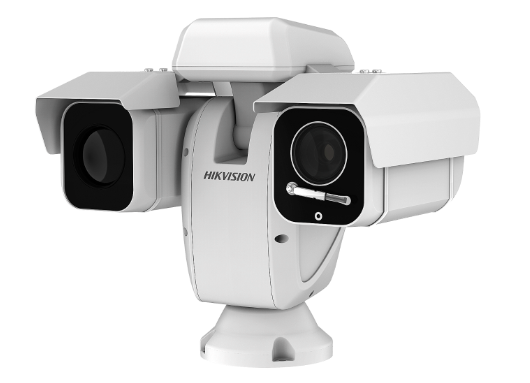

HIKMICRO DS-2TD6266-75C2L/V2 Thermal & Optical Bi-spectrum Network Stable PTZ Camera (640×512 pixel, -20°C~150°C)

Thermal module

Image sensor: Vanadium Oxide Uncooled Focal Plane Arrays

Max. Resolution: 640 × 512

Detector Pitch: 17μm

Response waveband: 8μm to 14μm

NETD: < 40mk(@25°C,F#=1.0)

Lens (focal length): 75 mm

MRAD: 0.23 mrad

Field of View: 8.3° × 6.64°

Min. Focusing Distance: 8 m

F number: 1.0

Optical camera

Image sensor: 1/2.8” Progressive Scan CMOS

Min. Illumination: Color : 0.05Lux @ (F1.8, AGC ON) B/W : 0.01Lux @ (F1.8, AGC ON)

Focal Length: 6.7-330mm, 49 X

Digital Zoom: 16 X

Field of View: 41.3° - 1.2° (Wide-Tele)

Min. Working Distance: 10-1500mm(Wide-Tele)

Aperture Range: F1.8-F6.1

Focus Mode: Auto / Semiautomatic / Manual

WDR: Digital

Smart function

VCA: Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), 10 scenes and 8 VCA rules for each scene.

Temperature Measurement: Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)

Temperature range: -20 °C to 150 °C (-4 °C to 302 °F)

Temperature accuracy: ± 8 °C (14.4 °F)

Fire detection: Support 10 fire points

General

Menu: English

Wiper: Yes

Power: 24V AC, 120W

Work Temperature/Humidity: From -40°C to 60°C (-40°F to 140°F); Humidity: 90% or Less

Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Dimensions: 486.1 mm × 351.6 mm × 450.3 mm (19.14" × 13.84" × 17.73")

Weight: Approx. 19kg (41.89lb)
