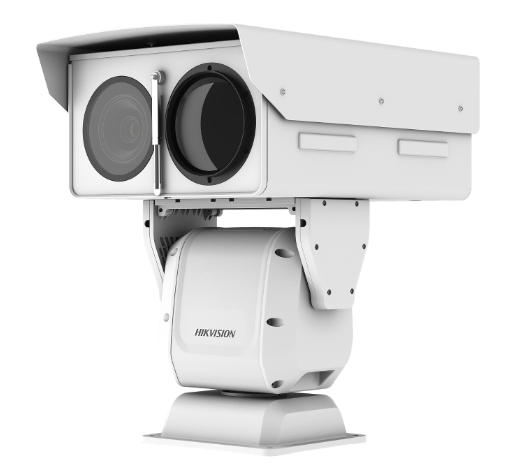

HIKMICRO DS-2TD8166-180ZE2F/V2 Thermal & Optical Bi-spectrum Network Stable PTZ Camera (640×512 pixel, -20°C~150°C)

Image sensor: Vanadium Oxide Uncooled Focal Plane Arrays

Max. Resolution: 640 × 512

Detector Pitch: 17μm

Response waveband: 8μm to 14μm

NETD: < 40mk (@25°C,F#=1.0)

Lens (focal length): 45 mm to 180 mm

MRAD: 0.38 to 0.09 mrad

Field of View: WIDE: 13.8° × 11°; TELE:3.46° × 2.77°

Min. Focusing Distance: 5 m

Aperture: F 1.2

Optical camera

Image Sensor: 1/1.8 ” Progressive Scan CMOS

Min. Illumination: Color : 0.005 Lux @ (F3.5, AGC ON) B/W : 0.0005 Lux @ (F3.5, AGC ON)

Focal Length: 12.5-775 mm, 62 x

Field of View: 31.5 ° × 23.9 ° to 0.51 ° × 0.39 ° (Wide-Tele)

Min. Working Distance: 5 m (Wide-Tele)

Aperture Range: F3.5 to Close

Focus Mode: Auto / Semiautomatic / Manual

WDR: Digital

Smart function

VCA: Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), 10 scenes and 8 VCA rules for each scene.

Temperature Measurement: Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)

Temperature range: -20 °C to 150 °C (-4 °C to 302 °F)

Temperature accuracy: ± 8 °C (14.4 °F)

Fire detection: Support 10 fire points

General

Menu: English

Wiper: Yes

Power: 48V DC/5A, 220W

Work Temperature/Humidity: From -40°C to 60°C (-40°F to 140°F); Humidity: 90% or Less

Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Dimension: 649.2 mm × 438 mm × 261.3 mm (25.56 ‘’ × 17.24 ‘’ × 10.29 ‘’)

Weight: Approx. 60kg (132.3 lb)
