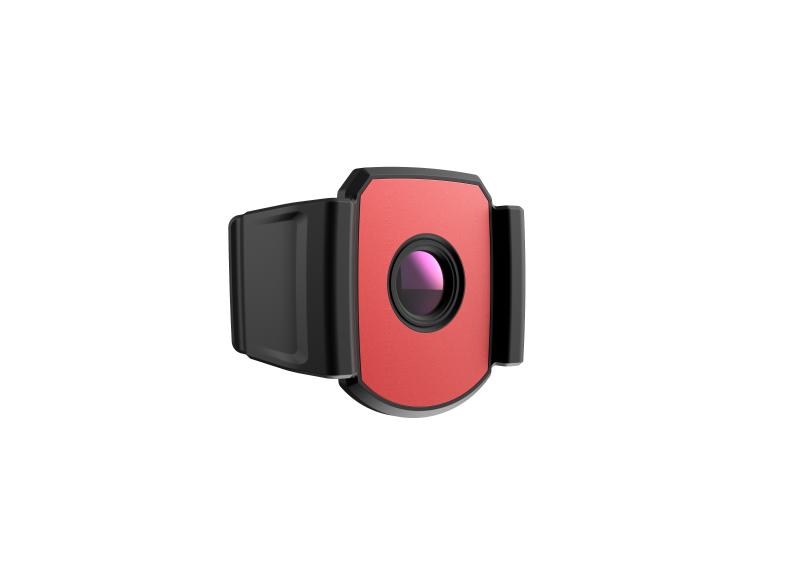

HIKMICRO HM-B201-MACRO Thermography Camera Macro Lens (0.12x)
Manufacturer: HIKMICRO Model: HM-B201-MACRO - Contact
Infrared Image
Focal Length: 4.6 mm
FOV (Field of View): 36° (H) × 28° (V)
IFOV (Spatial Resolution): 2.55mrad
Min. Focusing Distance: 30 mm ± 1 mm（1.18'' ± 0.04''）
Min. Target Size for Imaging: 100 μm × 100 μm
Min. Temperature Target: 500 μm × 500 μm
Magnification: 0.12x
Measurement and Analysis
Object Temperature Range: -20 to 150℃(-4 to 302℉)
Accuracy: Max(±3℃/5.4℉, ±3%)
General
Working Temperature Range: -20°C to 50°C (-4°F to 122°F)
Weight: 14 g（0.03lb）
Dimension: 51.4 mm × 65 mm × 25 mm（2.02'' × 2.56'' × 0.98''）
