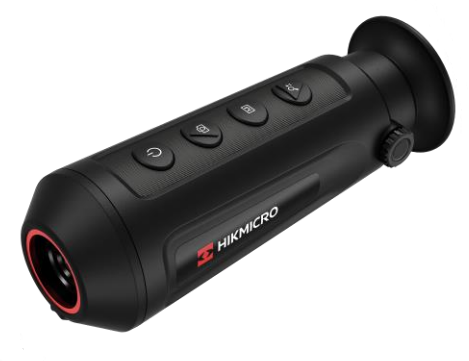

HIKMICRO LC06 Handheld thermal monocular camera (160 × 120 pixel)

Thermal Module

Image Sensor : VOx Uncooled Focal Plane Arrays

Resolution:  160 × 120

Frame Frequency:  50 Hz

Pixel Interval:  17 μm

Response Waveband:  8 μm to 14 μm

NETD: < 35 mK (@25°C),F#=1.1

Focal Length:  6.2 mm

IFOV:  2.74 mrad

Field of View:  24.7° × 18.7° (H × V)

Aperture:  F1.1

Image Display

Monitor:  0.2 inch, LCOS, 720 × 540

Palettes:  Black Hot, White Hot, Red Hot, Fusion

FFC (Flat Field Correction) Mode:  Auto, Manual, External Correction

Digital Zoom:  1 ×, 2 ×, 4 ×

Smart Function

Hot Track:  Yes

Detection Range:  219 m

Power Supply

Battery Type:  Rechargeable Lithium Battery

Battery Operating Time:  10 hours continuous running with CVBS and Wi-Fi hot spot off (@25°C), 7.5 hours continuous running with CVBS and Wi-Fi hot spot on (@25°C)

Battery Capacity Display:  Yes

General

Power:  5 VDC/2 A, 1.5 W, Type-C Interface

Work Temperature/Humidity:  From -20 °C to 55 °C (-4 °F to 131 °F); Humidity: 90% or Less

Protection Level:  IP67

Dimension:  158.3 mm × 61 mm × 57 mm (6.23" × 2.40" × 2.24")

Weight:  250 g (0.55 lb)
