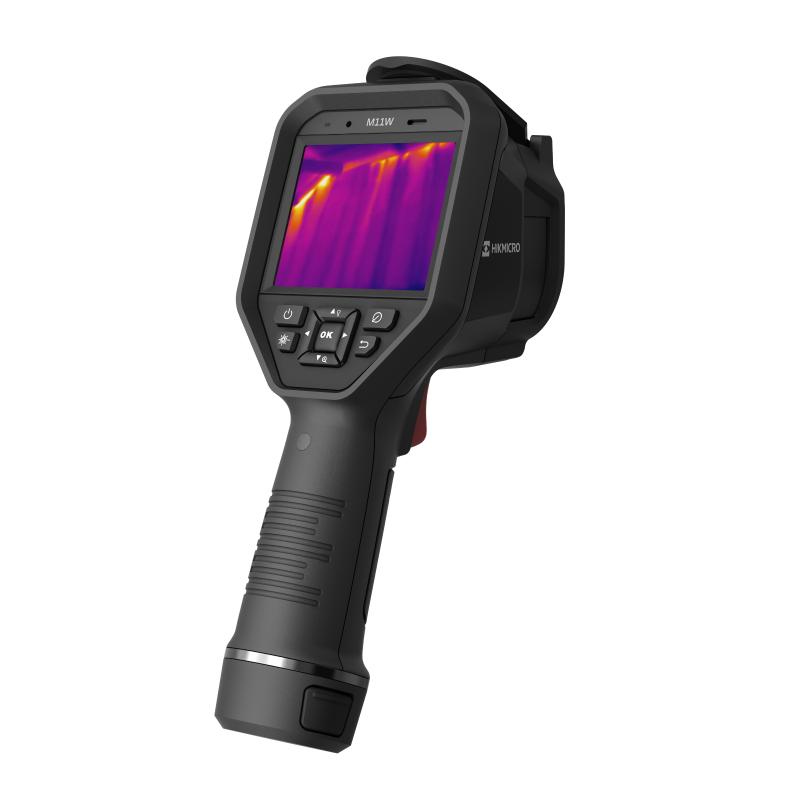

HIKMICRO M11 Handheld Thermography Camera (192x144pxl; -20°C~550°C; 1.74 mrad)

Infrared Image

IR Resolution: 192 × 144 (27,648 pixels)

SuperIR: 384 × 288 (110,592 pixels)

NETD: <40 mK (@ 25°C, F#=1.0)

Image Frequency: 25 Hz

Detector Pitch: 12 μm

Spectral Range: 7.5 μm to 14 μm

Focal Length: 6.9 mm

F-number: F1.0

Field of View (FOV): 18.8° × 14.1° (H × V)

Spatial Resolution (IFOV): 1.74 mrad

Min. Focus Distance: 0.1 m (1.33 ft)

Focus Mode: Manual Focus

Image Display

Visual Camera: 3264 × 2448 (8 MP)

Display: 640 × 480 Resolution, 3.5" LCD Touch Screen

Screen Brightness: Manual

Digital Zoom: 1.0× to 8.0× continuous

Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red

Focus Mode Palette: N/A

Color Alarm: N/A

Image Modes: Thermal/Visual/Fusion/PIP/Blending

Measurement and Analysis

Object Temperature Range: -20°C to 550°C (-4°F to 1022°F)

Accuracy: Max (± 2°C/3.6°F, ± 2%), for the ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F)

Measurement Tools: Center Spot, Hot Spot, Cold Spot

User-definable: 10 spots, 1 line, 5 rectangles, and 5 circles

Level and Span Mode: Auto/Manual/1-Tap Touch-screen

Data Storage and Communication

Storage Media: Removable 16 GB Micro SD Card

Image Storage Capacity: Approx. 60,000 Images

Annotations: Voice note: Max. 60 seconds; Text note: Max. 200 characters

Video Storage Capacity: Approx. 15 hours

Video File Format: MP4 video

General

Wi-Fi: 802.11 b/g/n (2.4 GHz and 5 GHz)

Bluetooth: Bluetooth 4.2

USB Interface: USB Type-C

LED Light: Yes

Laser: Yes, Class II, Wavelength: 635 nm; Power: < 1 mW

Battery Type: Interchangeable and rechargeable Li-ion battery

Battery Operating Time: Approx. 6 hours

Battery Charging Time: Approx. 4 hours fully charged

Protection Level: IP54

Drop Test Height: 2 m (6.56 ft)

Safety: IEC 61010-1

EMC: EN 50130-4, EN 55032, EN IEC 61000-3-2, EN 61000-3-3

Vibration: 1 g, IEC 60068-2-6

Shock: 15 g, IEC 60068-2-27

Working Temperature Range: -10°C to 50°C (-4°F to 122°F)

Storage Temperature Range: -20°C to 70°C (-4°F to 158°F)

Relative Humidity: < 95% non-condensing

Weight: Approx. 660 g (1.46 lb)

Dimension: 244 mm × 100 mm × 104 mm (9.6" × 3.9" × 4.1")

Tripod Mounting: UNC ¼”-20
