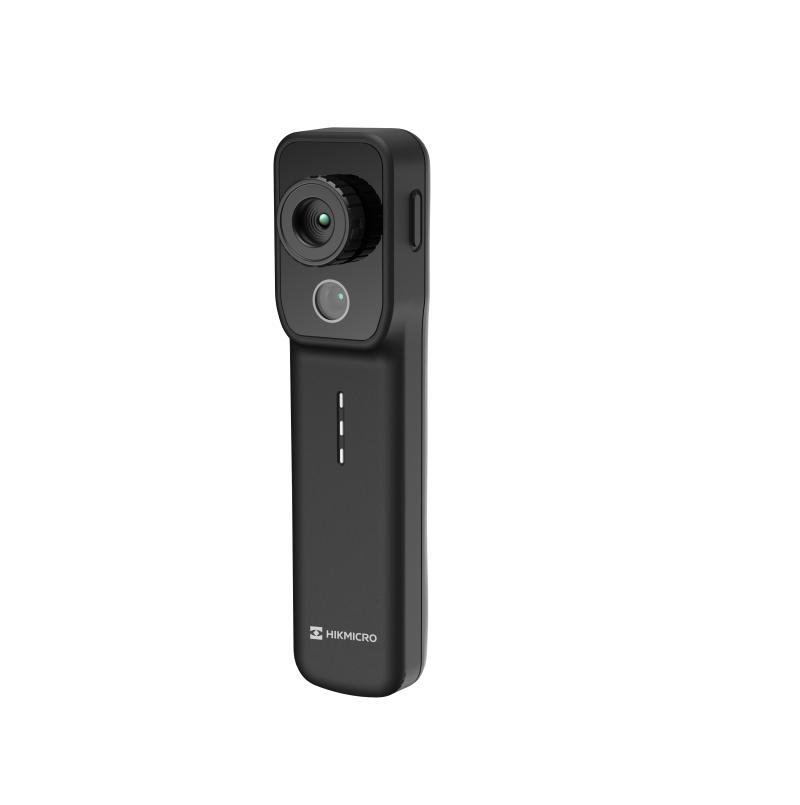

HIKMICRO MiniX Wireless Dual Camera Thermal Camera (256 × 192; -20°C ~ 550°C)

Infrared Image:

IR Resolution: 256 × 192 (49, 152 pixels)

NETD: < 40 mK (@ 25 °C, F#=1.0)

Image Frequency: 25 Hz

Detector Pitch: 12 μm

Spectral Range: 7.5 to 14 μm

Focal Length: 3.6 mm

F-number: F1.0

Field of View (FOV): 37.2° × 50.0°

Spatial Resolution (IFOV): 3.33 mrad

Focus Mode: Manual Focus

SuperIR: Yes, on captured images and live view

Min. Focus Distance: 0.05 m (0.164 ft)

Image Display:

Visual Camera: 640× 480 (0.3 MP)

Image Modes: Thermal/Visual/Fusion/PIP/Blending

Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red

Measurement and Analysis:

Object Temperature Range: -20°C to 550°C(-4°F to 1022°F )

Accuracy: Max (±2°C/3.6°F, ±2%), for the ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F)

Measurement Tools: Center Spot, Hot Spot, Cold Spot, User-definable: 3 spots, 3 rectangles and 1 line .

Level and Span Mode: Auto/Manual

Data Storage and Communication:

Video File Format: MP4 video (25 Hz), saved in HIKMICRO Viewer App

Image File Format: Radiometric JPEG, saved in HIKMICRO Viewer App

Radiometric Infrared-Video Streaming (Compressed): Over UVC（5Hz）

General:

Wi-Fi: 802.11 b/g/n (2.4 GHz and 5 GHz)

USB Interface: USB Type-C

Battery Type: Rechargeable Li-ion battery

Battery Operating Time: Approx. 4 hours

Battery Charging Time: Supports fast charging. Charge to 50% capacity in 30 minutes，85% in 1 hour，and 100% in 2 hours.

Power Saving Mode: Auto Power-off

Protection Level: IP54

Drop Test Height: 1 m (3.28 ft)

Working Temperature Range: -10°C to 50°C (-4°F to 122°F)

Storage Temperature Range: -20°C to 70°C (-4°F to 158°F)

Relative Humidity: < 95% non-condensing

Weight: Approx. 158 g (0.35 lb)

Dimension: 155.45 × 38.89 × 32.15 mm (6.12 × 1.53 × 1.27 in)

Power Supply: USB-C (5V/2A)

Battery Indicator: Yes, indicating battery level and charging status

Installation Method: Clipping it onto your phone or tablet, magnetic wall mounting, or tripod mounting

Software Compatibility: HIKMICRO Viewer app for iOS and Android, HIKMICRO Analyzer software for Windows

Device Compatibility: iOS (version 14 and later), Android (version 9 and later) smartphones and tablets, or Windows devices
