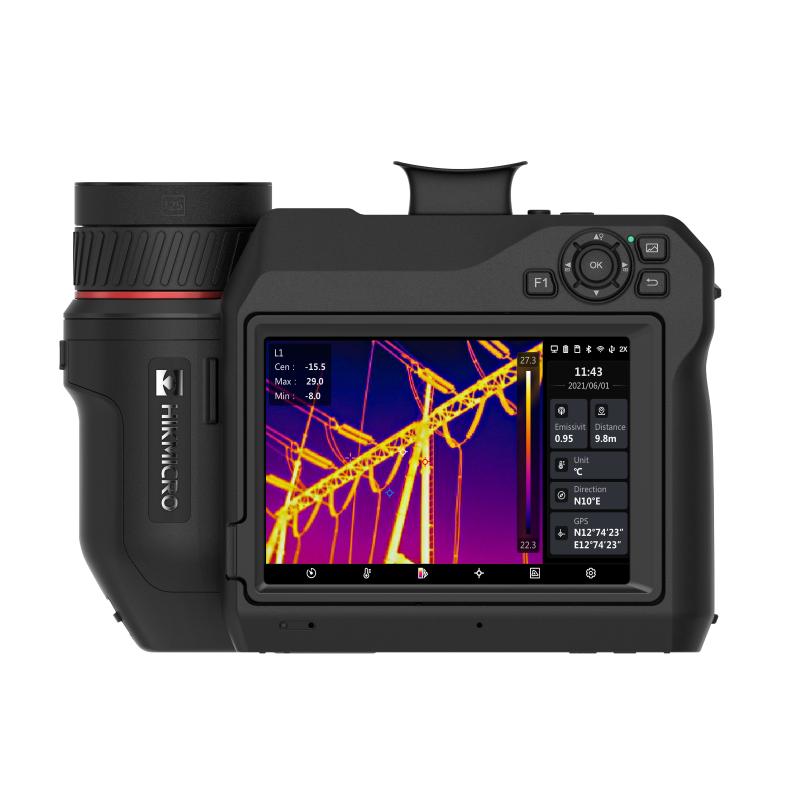

HIKMICRO SP40-L6/19 Handheld Thermography Camera (480 x 360px; -40°C~150°C, 0°C~650°C; 0.22 mrad/0.66 mrad)

Infrared Image

IR Resolution: 480 × 360 (172,800 pixels)

Super Resolution: 960 × 720 (691,200 pixels)

NETD: < 30 mK (@ 25°C, F# = 1.0)

Image Frequency: 30 Hz

Detector Pitch: 17 μm

Spectral Range: 7.5 μm to 14 μm

Focal Length: L6: 77.4 mm; L19: 25.6 mm

F-number: L6: F1.2; L19: F1.0

Field of View (FOV): L6: 6° × 4.5°; L19: 18.7° × 14°

Spatial Resolution (IFOV):  L6: 0.22 mrad; L19: 0.66 mrad

Min. Focus Distance:L6: 2 m (6.56 ft); L19: 0.15 m (0.49 ft)

Focus Mode: Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF

Focus Speed: Approx. 1 second

Image Display

Visual Camera: 3264 × 2448 (8 MP)

Display: 1280 × 720 Resolution, 5" LCD Touch Screen

Screen Brightness: Manual/Auto

Digital Zoom: 1.0x to 12.0x continuous

Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red

Focus Mode: Palette Above/Below/Interval

Color Alarm: Above/Below/Interval/Insulation

Image Modes: Thermal/Visual/Fusion/PIP/Blending

Measurement and Analysis

Temperature Range Setting:

Range 1: -40°C to 150°C

Range 2: 0°C to 650°C

Auto Switch

Accuracy: Max. (± 2°C/3.6°F, ± 2%)

Measurement Tools: Center Spot, Hot Spot, Cold Spot; User-definable: 10 spots, 1 line, 5 rectangles, and 5 circles

Level and Span: Mode Auto/Manual/1-Tap Touch-Screen

Inspection Route: Yes

Data Storage and Communication

Storage Media: Removable 64 GB SD Card

Image Storage Capacity: Approx. 60,000 Images

Annotations: Voice note: max. 60 seconds; Text note: max. 200 characters

Video Storage: Capacity Approx. 64 hours

Video File Format: MP4 video and radiometric video

General

Wi-Fi: 802.11 b/g/n (2.4 GHz and 5 GHz)

Bluetooth: Bluetooth 4.2

USB Interface: USB Type-C

HDMI Interface: HDMI-D

Laser Distance Meter: Indoor distance: 50 m (164 ft); Outdoor distance: 10 m (33 ft).

Laser: Yes, Class II, Wavelength: 635 nm; Power: < 1 mW

LED Light: Yes

GPS & Compass: Yes

Battery Type: Interchangeable and rechargeable Li-ion battery

Battery Operating Time: Approx. 4 hours

Battery Charging Time: Approx. 2.5 hours fully charged

Power Saving Mode: Yes

Programmable Buttons: 2

Protection Level: IP54, IEC 60529

Drop Test Height: 1 m (3.28 ft), IEC 60068-2-31

Safety: IEC 61010-1

EMC: EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3

Vibration: 2 g, IEC 60068-2-6

Shock: 25 g, IEC 68-2-29

Working Temperature Range: -20°C to 50°C (-4°F to 122°F)

Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)

Relative Humidity: < 95% non-condensing

Weight: Approx. 14851 g (3.2 lb)

Dimension: 204.7 mm × 141.03 mm × 87.8 mm (8.06” × 5.55” × 3.45”)

Tripod Mounting: UNC ¼”-20
