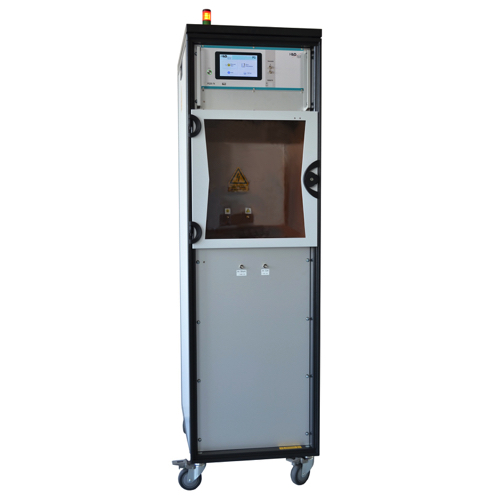

Mainframe
Microprocessor controlled touch panel: 7”, capacitive
Optical Ethernet Interface for remote control of the generator: optional
Interface for saving reports: USB
External trigger input / output: Switch/ 10 V
Connector for external safety interlock loop and external red and green warning lamps (acc. to VDE 0104): 24 V=, 40 mA
Mains power: 230 V, 50/60 Hz
Mains synchronous triggering, phase shifting, digitally selectable: 0 - 359°, step 1°
Pulse generator section
Peak value of charging voltage, adjustable: 0 - 20 kV, ± 2%
Max. stored energy: 10,000 Ws
Charging time for max. charging voltage: < 80 sec
Waveform of impulse output current: 8 / 20 µs ± 10 %
Impulse output current, adjustable via charging voltage: 2 - 70 kA ± 10 %
Pulse repetition rate for 70kA: 1/83 sec
Pulse repetition rate for 40kA: 1/47 sec
Output pulse polarity, switchable: POS/NEG/ALT
Current viewing resistor, built-in: 0.25 mΩ, 10 MHz
Impulse current output terminals: M12 bolts in the test chamber
Test adapter on the output terminals: M12 bolts
Ground rod: 0.6 m
Dimensions (19"-cabinet W * H * D): 560 * 1950 * 950 mm³
Weight: 200 kg
