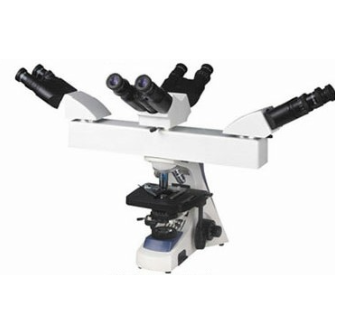

Viewing Head: Compensation Free Free Binocular Head, Inclined at 30°; 4-Teaching binocular head （55mm-75mm）
Eyepiece: WF10×/22mm
Objective: Infinity Achromatic Objective;4×10×40×(s)100×(s)Oil
Stage: Double layer mechanical stage; Stage Size:180mm×150mm; Moving Range:75mm×50mm
Condenser: N.A.1.25 Abbe condenser with iris diaphragm and filter
Focusing: Coaxial coarse & fine focusing adjustment; Fine focusing scale value 0.002mm
Light Source: Halogen Bulb 12V30W. AC85V-230V Adjustable brightness
Illuminator: High-light Kohler illumination
Optional Accessory
- Eyepiece：WF16×, WF20×.
- Infinity Plan Objectives：20×, 60 (s)
- INFINITY Plan Achromatic Objectives:4×10× 20× 40×(s)60×(s)100×(s)Oil
- Another model base frame is available Compensation Free Binocular & Trinocular
- Head (48mm-75mm)
- LED cursor(Pointer)
