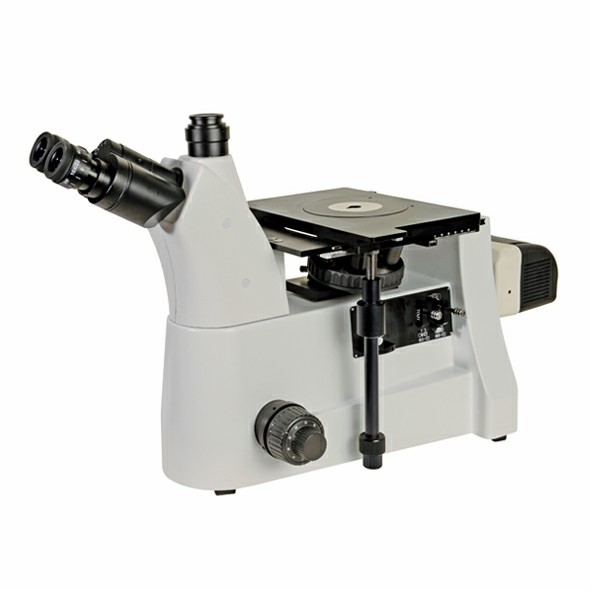

Optical system: infinite optical system
Viewing Head: Compensation Free trinocular Head inclined at 45° interpupillary distance adjustable 48mm-75mm
Eyepiece: Wide field Plan WF10X/22mm; WF10×/20mm,crosshair with reticule 0.1mm
Objective: infinity plan working distance B&D objective 5×/0.15（W.D.14.47mm; 10×/0.25（W.D.16.01mm; 20×/0.40（W.D.10.5mm; 50×/0.55（W.D.5.1mm）
Nosepiece: Quintuple Nosepiece with DIC Jack
Stage: Double layer mechanical stage; Stage Size: 255mm×170mm; Moving Range：70mm×50mm; Low located XY adjusting hand wheel
Focusing: Coaxial coarse & fine focusing adjustment,fine focusing scale value 0.001mm
Light source: Kohler illumination with aperture iris diaphragm and field iris diaphragm; Halogen Bulb 12V/100W，AC85V-230V; Brightness adjustable
Polarizing Device: Analyzer rotatable 360°, Polarizer & can be seeing out of the light path
Filter: Green, Blue, Neutral
Checking Tool: 0.01mm Micrometer
Optional Accessory:
- Eyepiece：WF15X/17mm, WF20X/12.5mm
- objective：infinite Plan Long working distance B&D objectives 80X/0.70（W.D.3.1mm, 100X/0.80（W.D.3.01mm）
- DIC Device
- Photography attachment and CCD C-mount 0.5X, 0.57X, 0.75X; 1.3Mega, 2.0Mega、3.0Mega, 5.0Mega, 10.0Mega pixels
- CMOS Digital camera eyepiece
- CCD Camera,colour 1/3 High resolution 700 TV lines
- Two-dimensional measurement software
- Metallurgical image analysis software
- Micrometer eyepiece
- Various Industrial Camera
