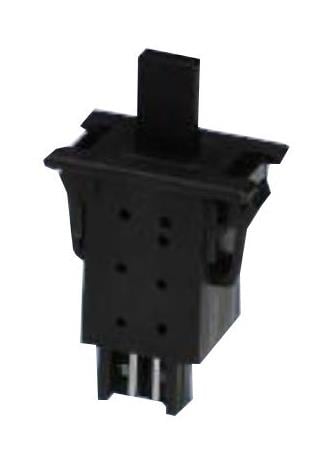

Hirose Electric CS6A-B2EA Push-Pull
Manufacturer: Hirose Electric Model: CS6A-B2EA - Contact
Life: 100000 Cycle
Width: 11 mm
Height: 24.1 mm
Length: 17.2 mm
Actuator: Plunger
Features: Dust Proof Structure, Long Stroke
Illuminated: Non-Illuminated
Contact Form: SPST
Actuator Style: Rectangle
Current Rating: 10 mA
Mounting Style: Panel Mount
Actuator Length: 8 mm
Contact Plating: Silver
Switch Function: ON - OFF
Housing Material: Polybutylene Terephthalate (PBT)
Actuator Material: Polyoxymethylene (POM)
Termination Style: Connector
Voltage Rating DC: 24 VDC
Flammability Rating: UL 94 V-0
Maximum Operating Temperature: + 65 C
Minimum Operating Temperature: - 25 C
