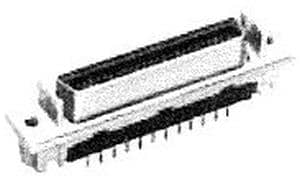

Hirose Electric DX20A-68S(50) Receptacles 68P F SRAIGHT RECPT T/H GOLD SCREW LOCK
Manufacturer: Hirose Electric Model: DX20A-68S(50) - Contact
Color: Black
Pitch: 1.27 mm
Gender: Female
Unit Weight: 17.700 g
Current Rating: 500 mA
Mounting Angle: Straight
Mounting Style: Through Hole
Voltage Rating: 125 VAC
Contact Plating: Gold
Number of Ports: 1 Port
Contact Material: Copper Alloy
Housing Material: Zinc
Termination Style: Solder Pin
Flammability Rating: UL 94 V-0
Insulation Material: Polybutylene Terephthalate (PBT)
Number of Positions: 68 Position
Insulation Resistance: 250 MOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 55 C
