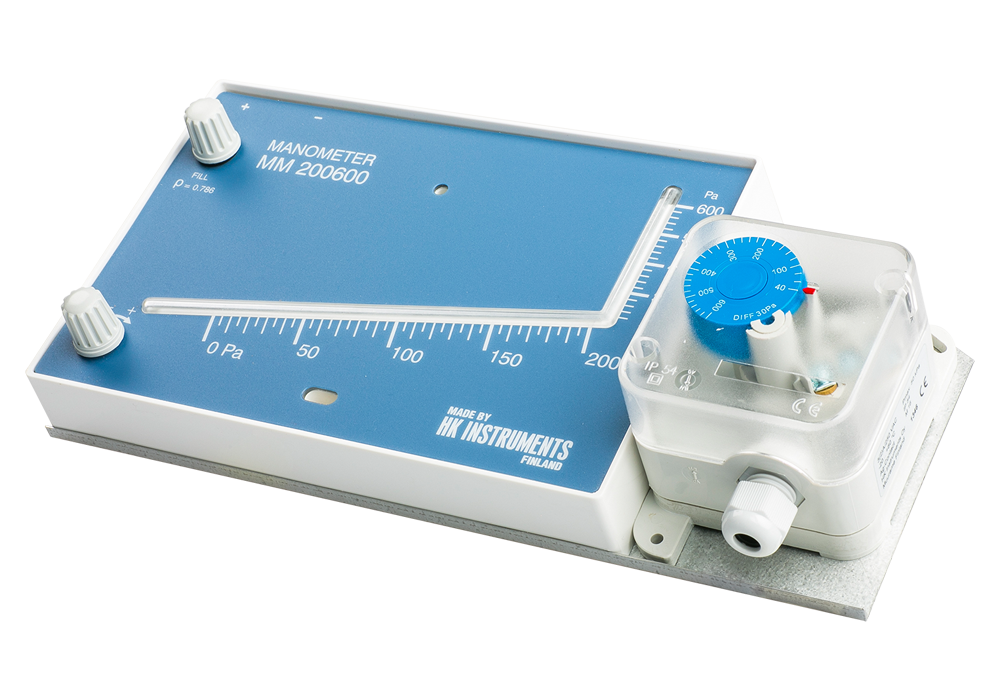

HK Instruments MM200600/PS600 Combination of liquid column manometer and pressure switch (MM: 0–600 Pa; PS: 40–600 Pa)
Manufacturer: HK Instruments Model: MM200600/PS600 P/N: 110.001.001 - Contact
Measurement range MM (Pa): 0–600 Pa
Measurement range PS (Pa): 40–600 Pa
Switching difference: 30 Pa
Accuracy of switching point (low limit typ.): 40 Pa ±5 Pa
Accuracy of switching point (high limit typ.): 600 Pa ±30 Pa
Electrical rating, resistive load: 3 A / 250 VAC
Electrical rating, inductive load: 2 A / 250 VAC
Maximum pressure: 50 kPa
Service life: > 1 000 000 switching operations
Measuring units: Pa
Environment: Operating temperature: -20...+60 °C; Storage temperature: -40...+85 °C
Protection standard: IP54
