Separate evaluation unit

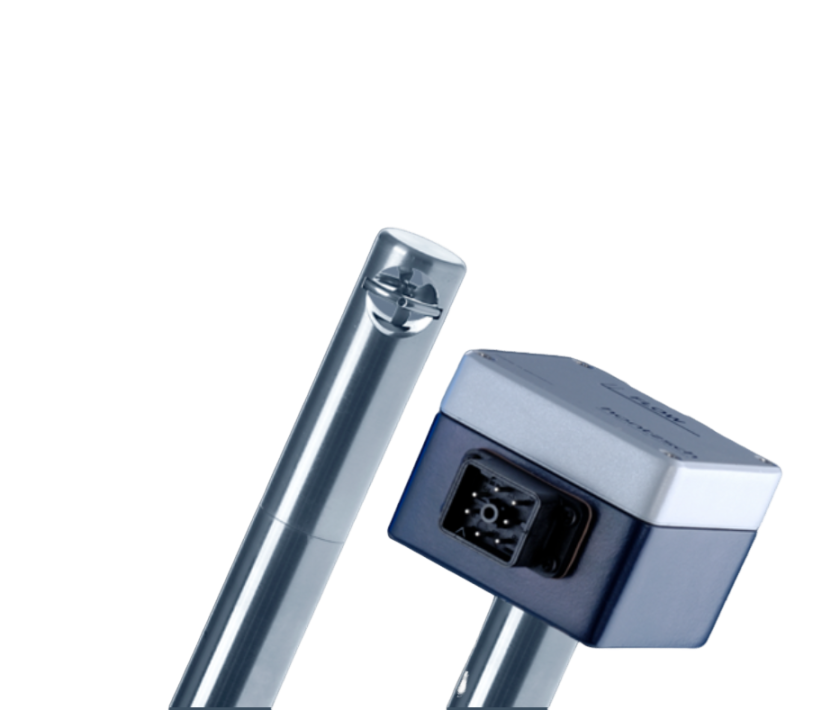

Sensor type: Vane wheel flow sensor ZS25 with sensor Ø 25 mm and shaft Ø 25 mm
Sensor length dimension C: 450mm
Medium: air/gases and water/liquids
Materials in contact with the medium: stainless steel 1.4404 / AISI 316L, ceramics Al2O3 99.9 %,VITON®, PTFE seal
Permissible temperature of the medium: -20 ... +100 °C (continuous)
Permissible temperature of the ambience: -40 ... +80 °C
Max. working pressure / Type of protection for sensor:
Up to 10 bar / 1 MPa kPa above atmospheric
Protection class IP68
Option:
CE II 3 G Ex ec IIC T6 Gc X Gas-Ex: Categorie 3G (Zone 2)
CE II 3 D Ex tc IIIC TX Dc X Dust-Ex: Categorie 3D (Zone 22)
CE II 2 G Ex ia IIC T6 Gb Gas-Ex: Category 2G (Zone 1)
Design: see datasheet for details
