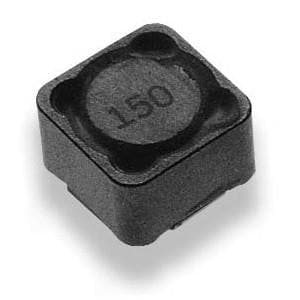

Holsworthy - TE Connectivity 3631B470LL Power Inductor 47 uH 15% 1600 mAmp
Manufacturer: Holsworthy - TE Connectivity Model: 3631B470LL - Contact
Width: 12.7 mm
Height: 6 mm
Length: 12.7 mm
Core Type: Molded
Q Minimum: 34
Shielding: Shielded
Tolerance: 15 %
Inductance: 47 uH
Application: Power
Termination: Standard
Core Material: Metal
Mounting Style: PCB Mount
Termination Style: SMD/SMT
Maximum DC Current: 1.6 A
Maximum DC Resistance: 130 mOhms
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 25 C
