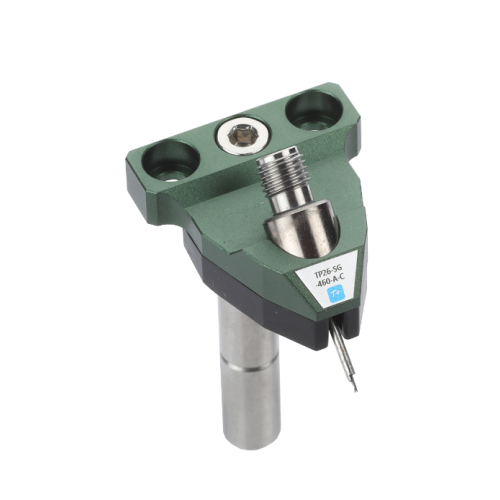

Characteristic impedance: 50 ohm
Frequency range: DC to 26.5GHz
Insertion loss (Typ. GSG-150μm): -0.4dB
Return Loss (Typ. GSG-150μm): -20dB
DC voltage: 100V
DC current: 1A
RF Power @ 10GHz max: 5W
Contact resistance on Au: 0.05 ohm
Connector : SMA (J)
Available Pitch: 50 to 1000μm (25um step)
Available Configuration: GS, SG, GSG
Probe Material: Nickel Alloy
Body Material: Aluminum Alloy
XY position error: Max 10um
Planarity error: Max 10um
