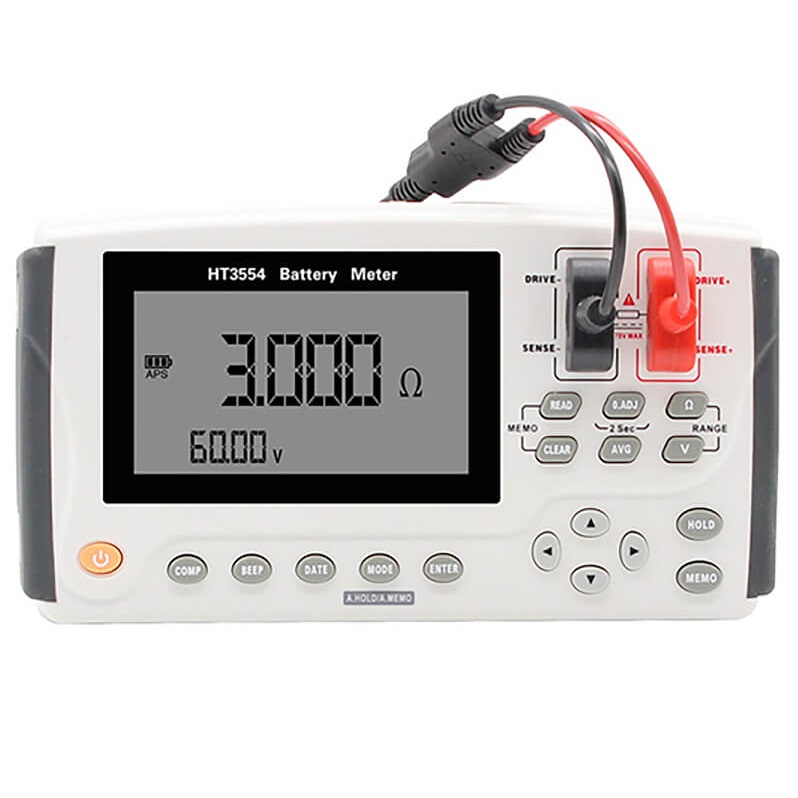

Hopetech HT3554 Portable Battery Tester (0.001mΩ ~ 3.100Ω; 60V, test online)

Display: 4.3 inch  VFD display

Measurement items: ESR, DCV

Basic accuracy:

- Resistance: ±1%

- Voltage: ± 0.05%

Measurement range:

- Resistance: 0.001mΩ ～ 3.100Ω

- Voltage: 0.0001V～60.000V

Signal source: AC 1kHz, Test current: <150mA

Range:

- Resistance: 3mΩ/30mΩ/300mΩ/3Ω

- 4 ranges in all

Sampling rate: 1 meas/sec (the average number optional)

Temperature: Range:-10°C ~60°C; Accuracy:±1°C

Correction: Short-circuit reset for all ranges

Comparator: 200 set  WARNING/FAIL/PASS  sorting

Internal data storage: Store up to 2400 set test data

Trigger: Internal/auto trigger

Interface: USB, EXPORT(port execution hold function)

Power supply: 12V/1700mAh lithium battery, AA (LR6) Alkaline Batteries x 8

Maximum rated power: 4VA

Dimensions: 208 mm (L) x120mm (W) x 52.5mm (D),without sleeve, weight:0.81kg

Included accessory: HT9363B, HT9371, HT9348, USB mini cable, charger, 0370 belt
