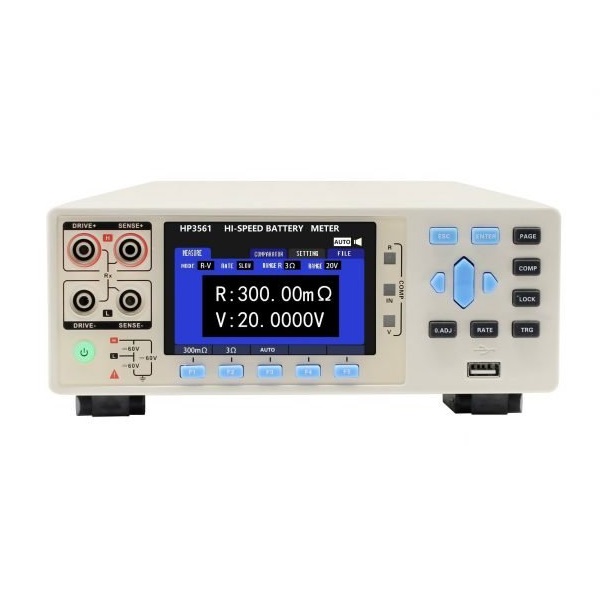

Hopetech HT3561 Battery Resistance Tester (0.01mΩ~3.0000Ω, 20.0000V)

Display: 3.5 inch  TFT-LCD display

Measurement parameters: ESR,DCV

Resistance accuracy: 0.50%

Resistance range: 0.01mΩ ～ 3.1Ω

Voltage accuracy: 0.01%

Voltage range: 0.1mV ~20.0000V

Signal Source: Measurement current frequency:1kHz; Open circuit voltage:7V;Test current:<10mA

Measurement range: 2 different ranges – 300mΩ, 3Ω; Automatic and manual test mode in full range

Measuring speed: 66 meas/sec., 30 meas/sec., 10 meas/sec.,3 meas/sec.

Calibration: Short-circuit reset for all ranges; REL function

Comparator: 30 sets of records, 4 grades of sorting，count number of sorting in each grade

Trigger mode: Internal/manual( optional external trigger)

Interface: RS-232C,Handler(PLC interface),LAN(optional)

Power supply: Voltage:90VAC～250VA; Frequency: 47Hz～400Hz;Power: max 10VA

Dimension & weight: 325 mm (L)x215mm (W)x96.5mm (D);  Weight: 3kg

Accessories: PB36 connector,HT9363A test clip,HT9800 communication cable, power cord
