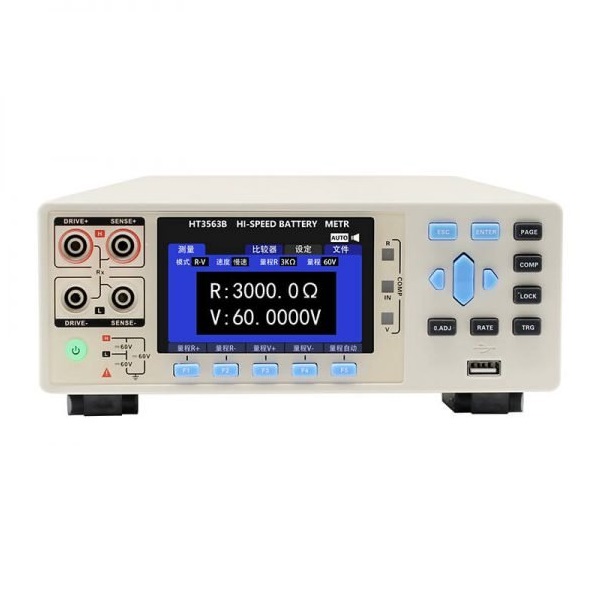

Display: 4.3 inch TFT-LCD display
Measurement parameters: ACR,DCV
Resistance:
Accuracy: 0.3%
Range: 0.1μΩ ～ 3kΩ
Voltage:
Accuracy: 0.01%
Range: 10μV～800V
Signal Source: Measurement current frequency: 1kHz; Open circuit voltage: <5V;Test current: <100mA
Range: 7 different ranges-3mΩ,30mΩ,300mΩ,3Ω,30Ω,300Ω,3KΩ;
Auto and manual modes are available in each range
Measuring speed: 100 meas/sec.,50 meas/sec., 20 meas/sec., 3 meas/sec.
Calibration: Short-circuit reset for all ranges;
Comparator: 30 sets of data records, 4 bins sorting, bin count
Others: data/report save, USB disk export,
Trigger mode: Internal/manual/external/bus trigger
Interface: RS-232/485, Handle (PLC interface), USB, Ethernet
Power supply: Voltage: 100VAC～256VAC; Frequency: 50Hz～60Hz;
Power (max): 15VA
Dimension (L*W*D): 325 mm*215 mm*96.5 mm
Weight: 3 kg
Standard accessories: HT9363A test clip, HT9800 communication cable, PB36 connector, power cord
