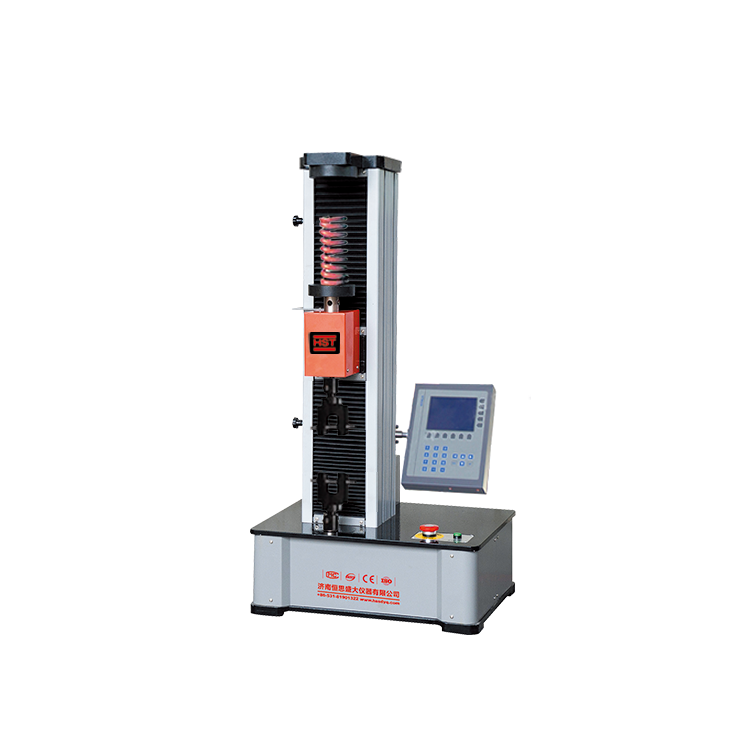

HST TLS-01 Single Column Digital Display Spring Testing Machine (100N)

Application: can test and analyze the tensile force, pressure, displacement and stiffness of precision springs such as tension springs, compression springs, disc springs, tower springs, leaf springs, circlips, leaf springs, composite springs, gas springs, mold springs, and special-shaped springs.

Max.Testing force （N): 100

Main frame structure: Single column, double testing space（Upper compression，down tensile）

Control type: Manual Control/Computer control

Accuracy: Class 1

Testing range (F·S): 2%～100%F·S

Test force accuracy: ≤±1%%

Power: AC220V±10%，50Hz

Dimension: 550×400×1600mm

Weight: About 100kg
