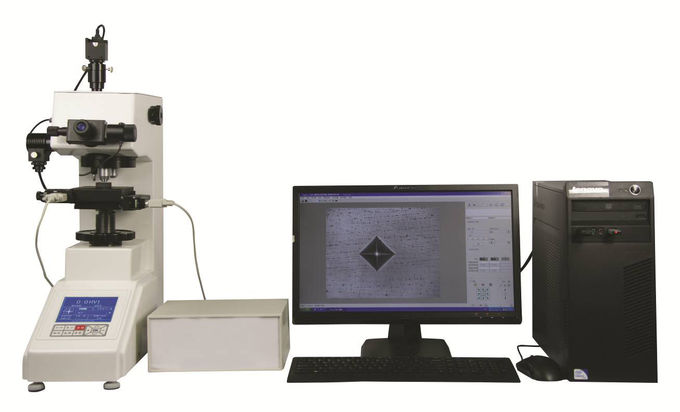

HUATEC HV-1MD Fully Automatic Vickers Hardness

Test Forces:10,25,50,100,200,300,500,1000gf

Carriage Control: Automatic Loading/Dwell/Unloading

Focus: Manual

Eyepiece: 10×

Objective: 10×,40×

Max. Measuring Length: 900um (100×), 230um (400×)

Measuring Range: 1HV～2967HV

Min. Graduation Value of Test Drum Wheel: 0.125μm,0.0625μm

Precise Bench Vice: Max. Open Size:50mm

Loading Speed: 50mm/sec

Dwell Time: 5-99sec

Min. Measuring Unit: 0.01μm (Under 400×, Manual Measurement in the Eyepiece)

Max. Height of Specimen: 90mm(Auto Stage: 80mm)

Max. Width of Specimen: 110mm

Parameters: HV / HK

Communication Port: RS232C

Accuracy Conforms to: JJG260-91,JIS B 7725,JIS B 7734,GB/T3430.2 -99 ASTM E-384,ISO 6507-2,ISO4546

Hardness Value Conversion: Conforms to GB1172-99 & ASTM Standard

Dimensions (W×L×H): 196 × 450 × 468mm

Weight: Unit: 42kg(Including standard accessories)

Power Supply: Single-phase 220V 50 Hz

Standard Delivery:

- Digital Micro Vickers Hardness Tester, Model: HV-1MD Testing Forces: 10, 25, 50, 100, 200, 300, 500, 1000 gf

1pc.X-Y Stage

1pc.Precise Bench Vice

2pcs.Standard Test Block (HV700 & HV400 Each one)

1pc.Diamond Indenter (HV)

1pc.Digital Micro Eyepiece (10X)

1pc.10X Objective

1pc.40X Objective

4pcs.Level Adjusting Foots

1pc.Leveler

1pc.Indenter Cover

1pc.Instrument Cover

2pcs.12V, 50W Spare Lamp

1pc.Power Cable

1set.Auxiliary tools

1pc.Operation & Maintenance Manual

- 1set.Auto Control, Measurement & Data Image Processing System HVS-M-AXYZF

1pc.Automatic Stage with Drive Box (100 ×100 mm, X,Y distance 50mm )

1pc.Industrial Controller (Brand computer)

1pc.1,300,000 pixels Digital CCD Camera

1pc.Optical Adapter & C-type Port

- Optional Accessories:

1set.HVS-M-AXY Software

1pc.Mounted Piece Fixture(Φ30mm)(Optional)

1pc.Universal Fixture (Including Leveler) (Optional)
