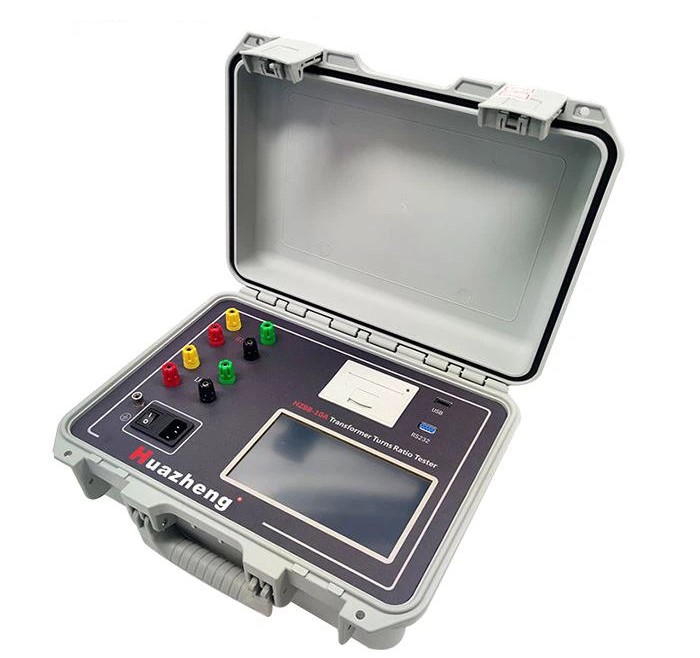

Huazheng HZBB-10A Transformer Turns Ratio Tester
Manufacturer: Huazheng Model: HZBB-10A - Contact
Rating: Variable Ratio - 0.9～10000 Angle - 0-360°
Angle measurement: 0-360°
Accuracy: ±0.1%(below500) 0.2%(501-2000) 0.5%(2001-10000)
Output voltage: automatically adjusted according to load
Resolution: Minimum is 0.0001，Angle - 0.01°
Working power supply: AC 220V±10% 50Hz
Applied temperature: -10℃～40℃
Relative humidity: ≤85%, non-condensing
Dimension: Tester：360*290*170(mm) Wire box：360*290*170(mm)
Weight：Tester: 5.9KG Wire box：5.65KG
