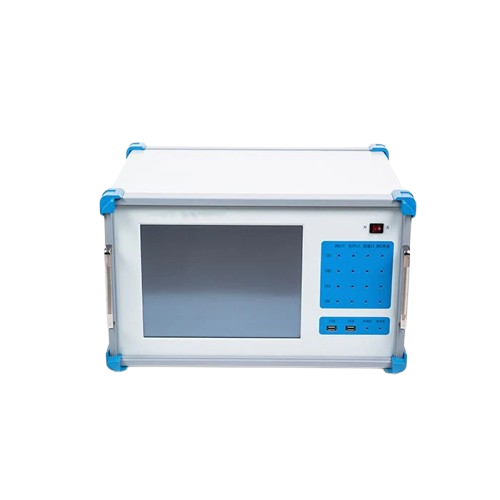

Huazheng HZJF-9102 Partial Discharge Detector (6pF～250µF)

Channels Number: Independent 2-channel

Sampling Speed Rate: Max 10M

Sampling Accuracy: 12bit

Measurement Range Switch: -40dB,-20dB, 0dB,20dB, 40dB, 60dB 6 levels in total

Measurement Frequency Band: 3dB broadband 10kHz~1MHz

Digital Filtering: 10kHz~1MHz Arbitrary selection

Programmed Filter Segmentation

Lower side frequency: 10kHz, 20kHz, 40kHz, 80kHz

Higher side frequency: 100kHz,200kHz,300kHz,400kHz

Nonlinear Error:10%

Measuring Range: 0.1pC~100,000pC

Sensitivity: 0.1pC

Capacity range of the testable item: 6pF～250µF

Test Power Supply Frequency Range: 50-500Hz

System: Windows XP

Working Environment: Ambient temperature:-10~45°C Realative humidity:≤95%

Dimension: 474x 288x 370(mm)

Weight: 15.8kg
