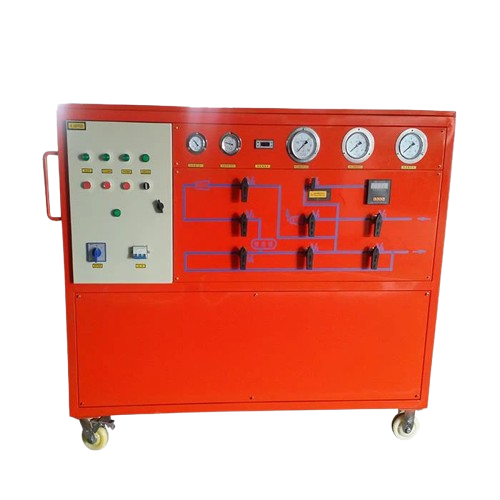

Huazheng HZSF-15-50 Sf6 Gas Recovery And Purification Device (≥5m³/h)

Power Supply AC: 380V

Rated maximum gas storage pressure(20℃): ≥4MPa

Final vacuum: ≤10Pa

Vacuum maintenance of device: At 133 Pa pressure for 24 hours, the vacuum value increased ＜400 Pa

Compressor pumping rate: Shenyang Valley Wheel 10m3/h Compressor

Vacuum pump pumping rate: Shanghai bipolar pump 54 m3/h＝15L/S

Adaptation inlet pressure of the recovery unit(20℃): 0~0.8MPa

Recovery final pressure of electrical equipment(20℃): ≤50 Kpa

Gas oil content control after recovery: Domestic oil＜10μg/g

Annual leakage rate of the device: ＜1%

Continuous trouble-free running time of the device: ≥1000h

Accumulated trouble-free running time: ≥5000h

Noise level: The whole machine≤75dB(A)

Actual liquid storage capacity: 50KG

Refrigerated liquefaction compressor: Domestic Compressor

Frozen storage tank: 50L

Gas moisture after recovery(PPM/V): 60PPM/V

Gas oil after recovery(PPM/V): 60PPM/V

Dry filtration mode: Vacuum heating activation regeneration

Initial inflation pressure(pa): ≤133pa

Inflation final pressure(mpa): 0.8mpa

Aeration rate(m³/h): ≥5m³/h

Gasification way: Automatic temperature control of electric heating

Dimensions: 1360×800×1300mm
