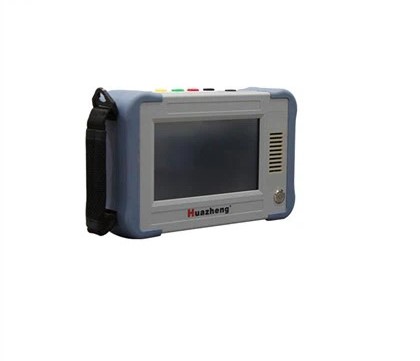

Huazheng HZYA-2Z-I Hand-held On Load Switch Tester (100Ω)

Output current: 1.0A、0.5A、0.2A

Measuring range

Transition resistance：

0.3Ω～20Ω(1.0A)

5Ω～40Ω(0.5A)

20Ω～100Ω(0.2A)

Transition time：0～320ms

Open circuit voltage: 24V

Measurement accuracy

Transition resistance：±(5%±0.1Ω)

Transition time：±(0.1%±0.2ms)

Resonant frequency: 20kHz

Storage method: local storage

Dimensions:

Main engine: 252*160*65 （mm）

Outer box: 425*335*210（mm）

Instrument weight:

Main engine: 2KG

Outer box: 8KG

Test lead length: Standard 13 meters, length can be customized

Ambient temperature: -10℃～50℃

Environment adaptation: ≤85%RH

Working power: Battery powered

Power frequency: 50±1Hz
