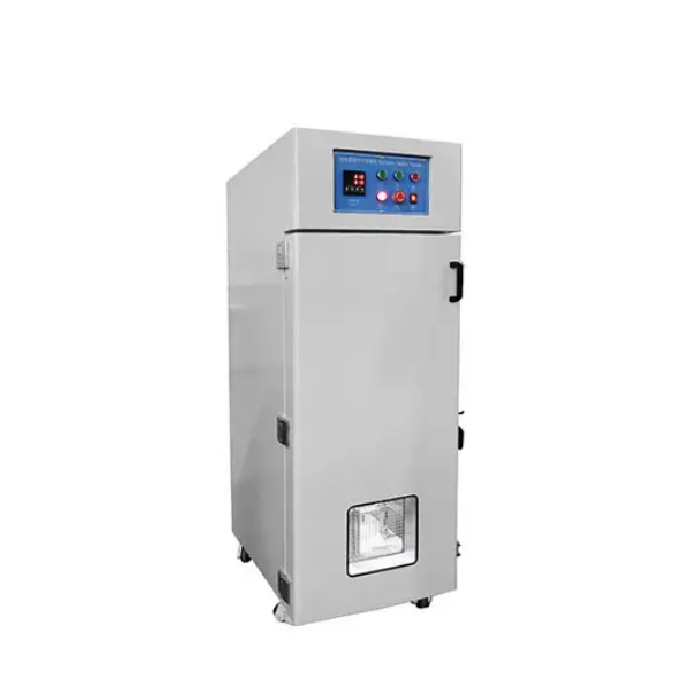

Huda HUD-H206 Battery Impact Test Chamber (0-1000mm, AC220V)
Manufacturer: Huda Model: HUD-H206 - Contact
Weight: 9.1kg and 10kg;
Impact height: 0-1000mm (can be set);
Displacement accuracy: ≤±5mm;
Impact method: free fall;
Control mode: PLC touchscreen control;
Impact floor material: No. 45 steel, thickness 30 password;
Metal rod: 15.8±0.2mm (5/8 inch) steel rod;
The maximum size of the battery tested: 200x200x200mm
Inner box size: 490x520x1430mm (width x depth x height);
Dimension: 700x1000x1720m
Power supply: 1∮, AC220V, 3A
Power supply power: 700W
Weight (approximately): about 270kg
