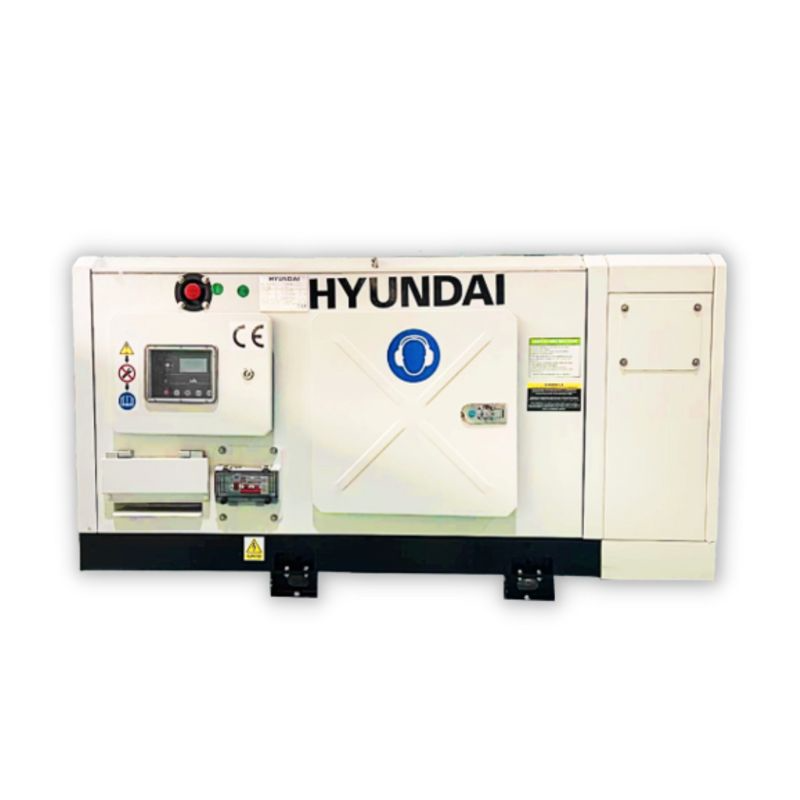

Hyundai DHY11KSV Diesel Generator (11.5KVA, single phase)

Generator

Model: DHY11KSV

Continuous Power (KW/KVA): 10.5/10.5

Standby Power (KW/KVA): 11.55/11.55

Power Factor: 1.0

Operating Frequency (Hz): 50

Voltage (V): 230

Current (A): 47.7

Phase: Single-phase

ATS Connection Port: Yes, standard version

Fuel Tank Capacity (L): 40

Fuel Consumption at 75%/100% Load (L/h): 2.8/3.5

Continuous Operating Time at 75% Load: 9.9 hours

Noise Level at 7m (dB): 68

Battery (V): 12

Dimensions (mm): 1600x740x825

Total Weight (kg): 560

Engine

Model: 4DW81-23D

Engine Type: Diesel

Power Output (kW/1500 RPM): 17

Rotation Speed: 1500 RPM

Structure: 4-cylinder

Compression Ratio: 18.5:1

Battery Charger: 12V – 45A

Governor: Electronic

Lubricating Oil Capacity (L): 7.8

Starter Motor (kW): 3.5

Exhaust Gas Flow (m³/min): 4.7

Exhaust Gas Temperature (°C): 470

Engine Dimensions (mm): 700x555x680
