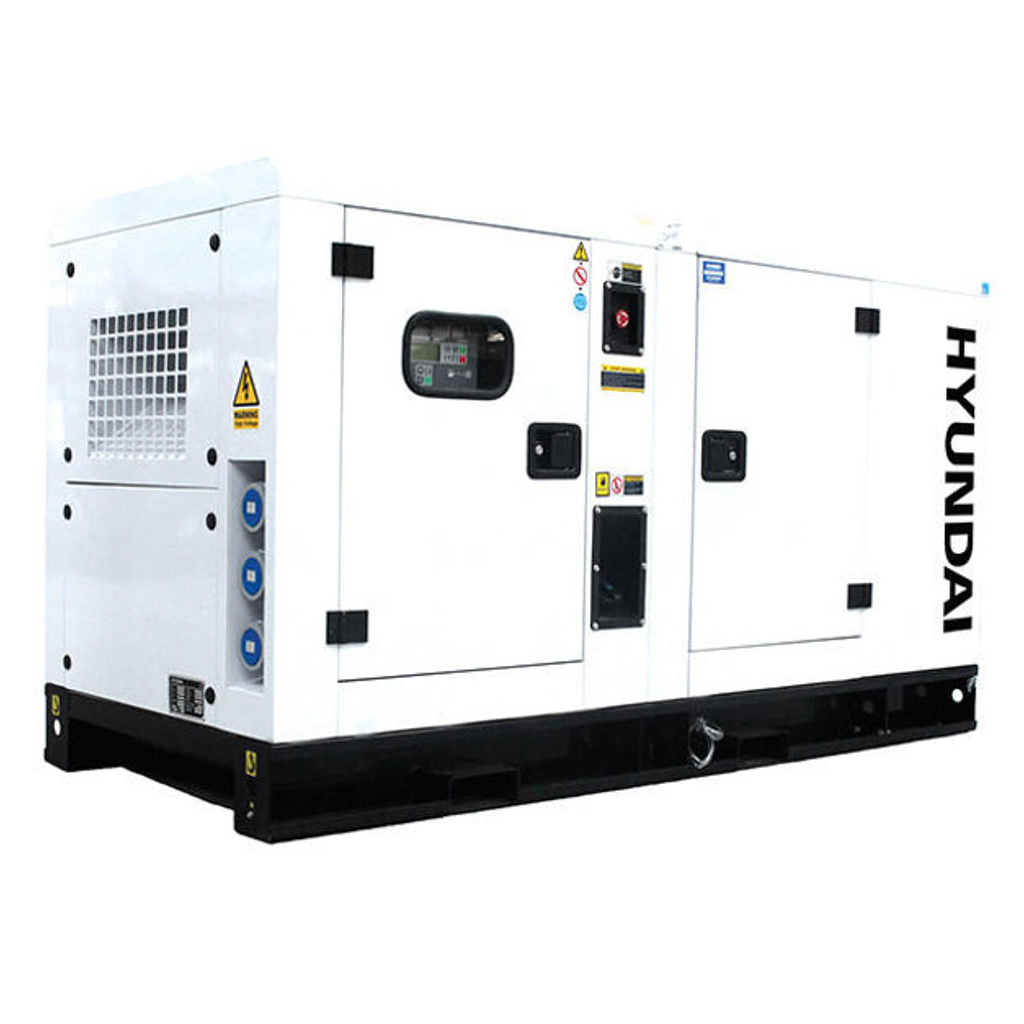

Hyundai DHY14KSE Diesel Generator (12.5/10 KVA/KW)

Generator

Continuous Power Output (kVA/kW): 12.5/10

Standby Power Output (kVA/kW): 13.8/11

Power Factor: 0.8

Operating Frequency: 50 Hz

Voltage (V): 400/230

Current (A): 22.79

Phase: 3-phase

Starting System: Electric Start

ATS Connection Port: Yes

Fuel Tank Capacity (L): 78

Fuel Consumption at 100% Load (L/h): 4.7

Continuous Operating Time at 70% Load (h): 21

Noise Level at 7m (dB): 72

Battery: 12V-55Ah

Dimensions (L×W×H) (mm): 2008×900×1130

Net Weight (kg): 750

Engine

Model: 4H2.3-G2

Engine Type: Diesel

Configuration: 4 Cylinders, Inline

Compression Ratio: 18:1

Lubricating Oil Capacity (L): 5

Lubricating Oil Consumption (L/h): 0.028

Cooling System: Water Cooling

Air Intake Flow (m³/min): 4.2

Exhaust Gas Temperature (°C): 480

Engine Dimensions (mm): 919×565×760

Net Weight (kg): 220

Alternator

Model: 164C

Speed: 1500 RPM

Phase: 3-phase

Power Output (kVA): 13.5

Power Factor: 1.0

Protection Class: IP23

Insulation Class: H

Voltage Regulation: Automatic AVR SX460
