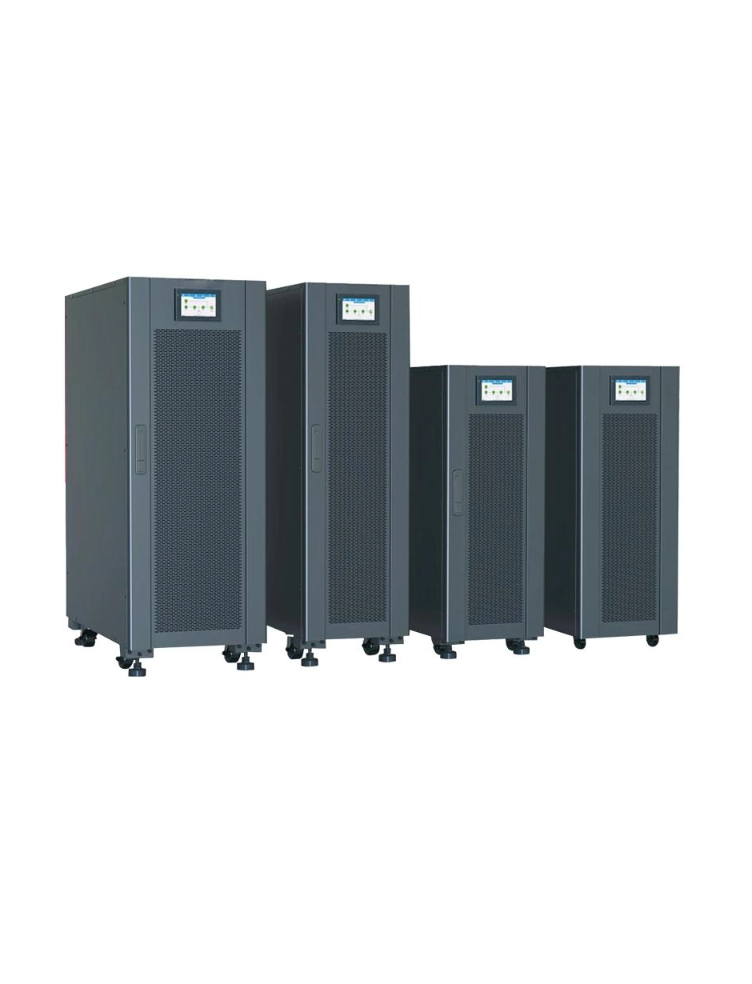

Hyundai HD-40KH3 Online Uninterruptible Power Supply (40KVA/36KW)

Specifications

Rated power (KVA/KW): 40/36

Noise level (dBA): 60

Input specification

Nominal voltage (VAC): 380/400/415

Voltage range (VAC): 304 - 485 or 138 – 304

Frequency range (Hz): 40-70

Number of phases: 3

Output specification

Voltage (VAC): 380/400/415

Frequency (Hz): In main mode sync utility; Battery mode 50/60Hz ± 0.1%

Switching time (second): 0 second

Waveform: Standard sine wave

Battery

Quantity and type: 12V x 32PCS (384VDC)

Dimension & Weight

Product dimensions (mm): 360 x 850 x 885 (L x W x H)

Weight: 95kg

Operating environment

Operating temperature: 0ºC – 40ºC

Humidity: 20 – 95% without condensation
